Water Cooled UV LED Curing System
The water-cooled UV LED Curing System from Streamline Packaging offers accurate and consistent UV curing across a variety of commercial and industrial printing applications. Whether you need to cure ink on coated stocks, metal, glass, automotive products, plastics, electronics and more, you’re sure to find the right solution with Streamline Packaging’s new water-cooled UV Curing System.
Streamline Packaging’s Water-Cooled UV is capable of curing inks in a 40mm x 160mm area from a single lamp module. The system features an advanced LED module to provide consistent luminance, resulting in a reliably cured product, every time. The stability of UV LED technology makes the output of electricity predictable and stable, avoiding problems associated with conventional halogen heat lamp drying.
We have inks and fluids for all of our printing equipment!

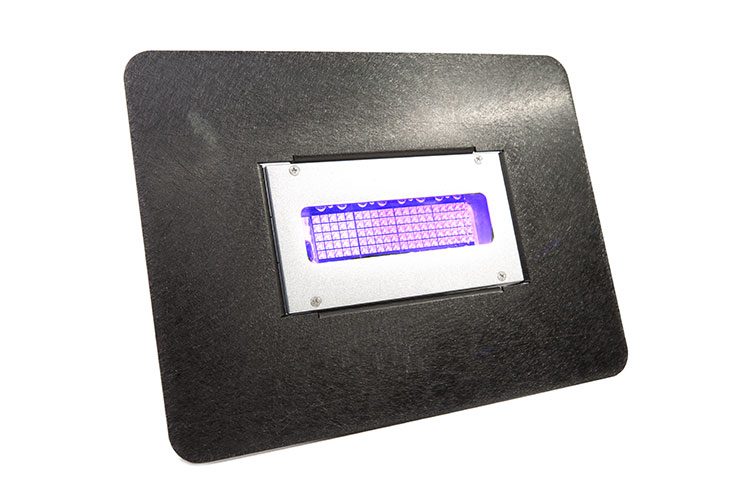

UV LED Offers Instant Curing

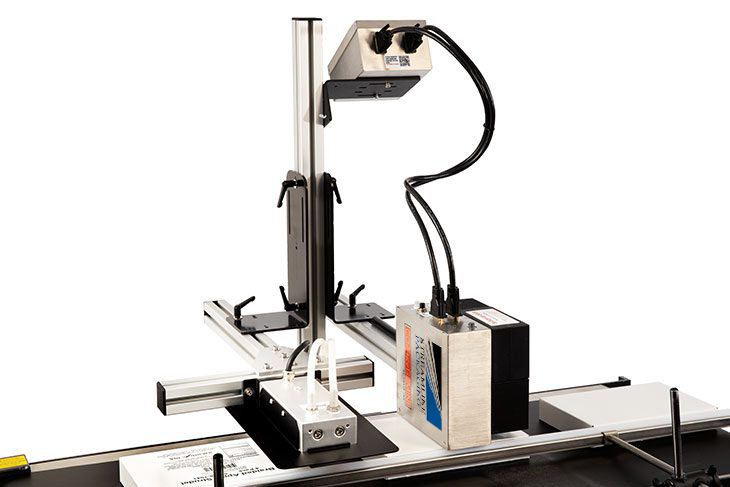

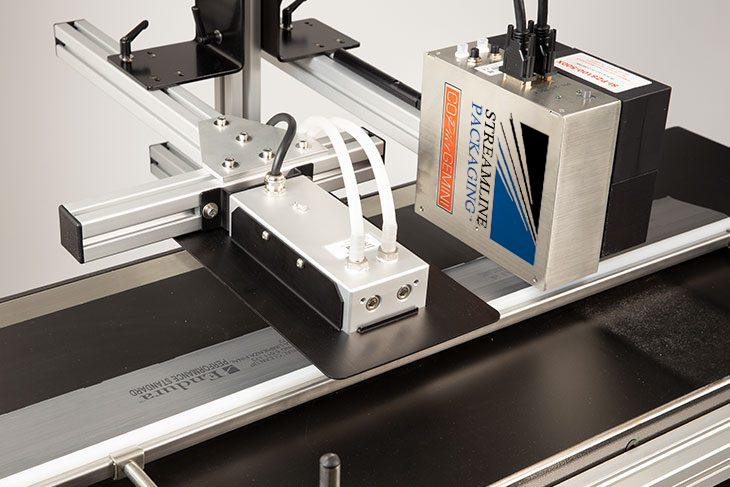

Mount to Existing Line

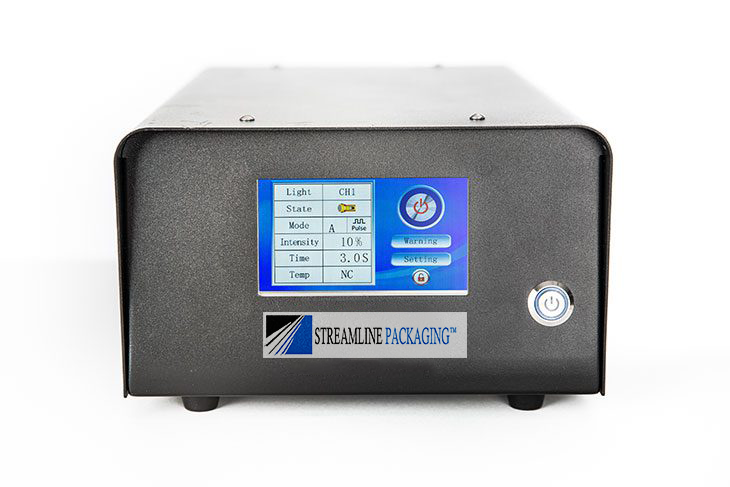

Simple Touchscreen

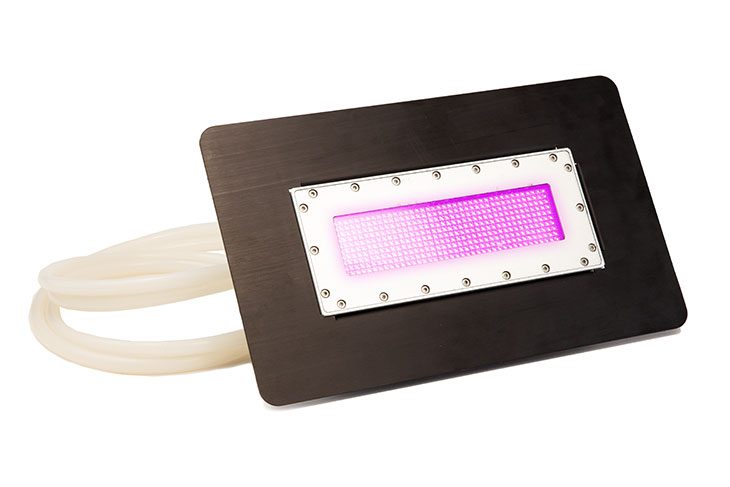

Curing on Plastics, Metals, Film, & More

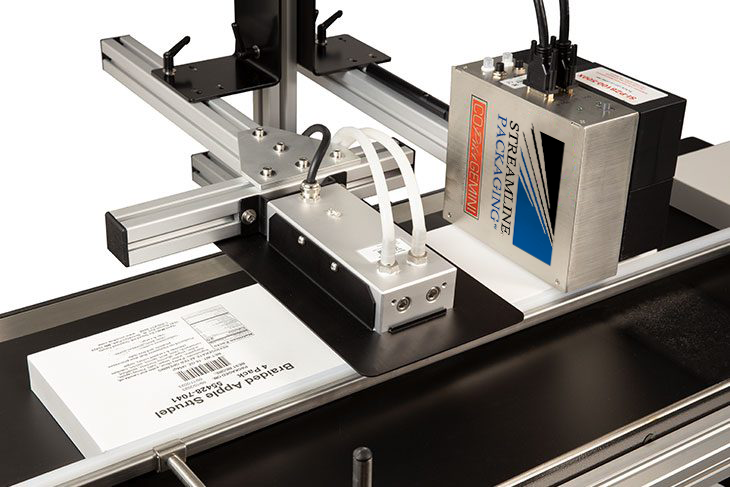

Printing Samples
Benefits
- The system features an advanced LED module to provide consistent luminance, resulting in a reliably cured product, every time
- Accurate and consistent UV curing across a variety of commercial and industrial printing applications
- Capable of curing inks in a 40mm x 160mm area from a single lamp module
- Stable and efficient way to cure ink
- Includes a chiller, water-cooled lamp module, and a controller
Chiller Specifications
- Tank Capacity – 6 liters
- Max Pump Lift – 12 meters
- Chiller Dimensions – 22”L x 11.25”W x 18.25”H or 559mm x 286mm x 464mm
- Power Supply – 110VAC, 60Hz
System
- Wave Length – 395 ± 5nm
- Irradiancy – 12W / cm ²
- Effective Illumination Area – 1.6” x 6.3” or 40mm x 160mm
- Recommended Illumination Height – 1.5 – 10mm from substrate
- Production Line Dry Time – Up to 115 f/min (35m/min) depending on substrate
- Control Modes – Manual or Automatic
- Illuminant Output Control – 10% – 100%
- Controller Dimensions – 18”L x 11.75”W x 6.75”H or 457mm x 298mm x 171mm
- Illuminating Head Dimensions – 8.25”L x 3.5”W x 2”H or 209mm x 89mm x 51mm
- Lamp Shield Dimensions – 12.5” x 7.5” or 317mm x 190mm
- Power Supply – 90 – 220VAC, 50/60Hz
- LED Lifetime – 20,000 hours or more
- Working Environment – 32°F (0°C) – 95°F (35°C)
- Storage Environment – 14°F (-10°C) – 140°F (60°C)
