Viper Thermal Inkjet Printer

Streamline Packaging’s Viper™ thermal inkjet printer utilizes revolutionary Funai® technology to print superior quality hi-resolution characters on porous or non-porous surfaces. With up to 0.5” (12.7mm) of print height per printhead, the Viper offers a versatile, yet cost-effective solution for your coding and marking applications.

We have inks and fluids for all of our printing equipment!

Benefits

• Print up to 0.5” (12.7mm) of hi-resolution characters, razor-sharp text, scannable bar codes, and great looking logos at 600 dpi
• Revolutionary Funai® technology for superior quality coding
• 8.9” full-color touchscreen PC that gives users access to the printer’s internal messages and print functions

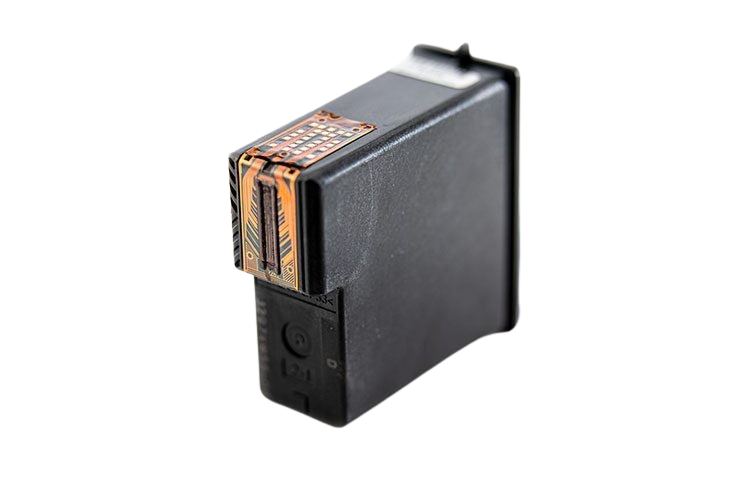

• No-mess ink cartridges
• Print on a variety of porous or non-porous surfaces

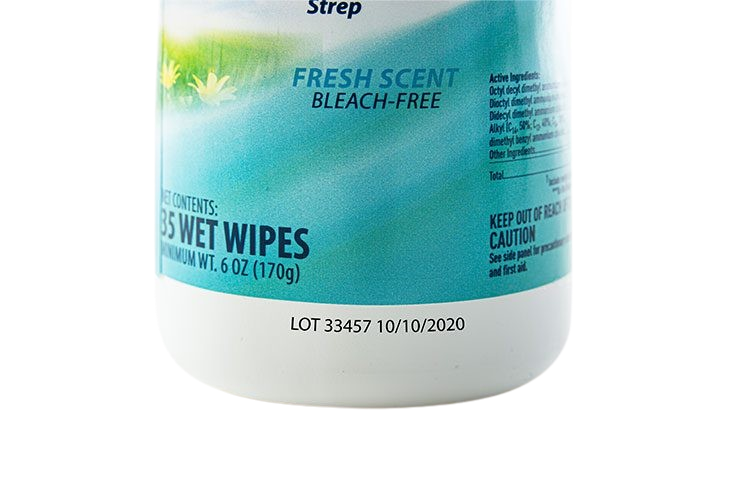

Printing Samples

Optional Accessories

• Encoder – For operation with variable speed conveyors
• External Photocell Scanner – For use in place of internal photocell
• 2D Bar Code Capability – Ability to print 2D bar codes at Pro software level
• Software Upgrades – Advanced version (standard); optional Pro or Ultimate version upgrades for higher speed, increased message length, and additional features

Software

• Time & Date – Full time and date functionality including expiration date and Julian Dates
• Item Numbering – Automatic counters for daily production and lot numbering
• Shift Codes – Programmable shift codes with automatic rollover
• Bar Codes – All standard 1D bar codes included; 2D bar codes require optional Pro software upgrade
• Fonts – Arial and Arial Bold resident fonts for use in variable data elements; static elements in any Windows® TrueType font
• Logos – Most image files supported with Sirius software
• Printing Features – Reverse, invert, rotate, repeat; print on/off button
• Message Length – Up to 39” (1m) standard; up to 157” (4m) optional
• Message Storage Space – 2GB storage space
• Ink Usage – Shown in Sirius software
• User Data Prompts – Prompts for user input at start of print job by manual input on touchscreen
• Languages – English, Chinese, French, German, Japanese, Spanish, Polish, Russian, Italian

System

• Print Technology – Thermal inkjet technology from Funai
• Maximum Print Height – 0.5” (12.7mm) per printhead
• Vertical Print Resolution – 300 or 600 dpi capable of printing razor sharp graphics, small character text, and scannable bar codes
• Horizontal Print Resolution – 50 dpi to 900 dpi
• Print Speed – Up to 197 fpm (60 m/min) at 300 dpi standard; up to 787 fpm (240 m/min) at 300 dpi optional
• Time & Date – Internal real time clock with battery back-up
• Product Sensor – Internal photocell standard; external photocell or encoder optional
• Communication Interface – One USB host, one Ethernet input, one 15-pin D-sub serial port for power/external photocell/encoder
• Touchscreen – 8.9” (22.6 cm) full color touchscreen PC with Windows 10 Operating System; pre-loaded with Sirius™ software; includes mounting bracket with swivel arm and USB cable
• Conveyor Mounting Bracket – Provides stable mount to conveyor or other material handling equipment
• Ink Cartridge Volume – 46ml cartridge
• Ink Low Indicator – Status alert on touchscreen and printer
• Ink Formulations – Solvent and aqueous inks
• Substrate Capabilities – Porous or non-porous surfaces
• Electrical Requirements – 100 – 240 VAC, 50/60 Hz
• Operating Environment – 41°F – 104°F (5° – 40°C)
• Agency Certifications – CE
