Versatile Series Automatic L-Sealers

Proven reliable over and over again, Streamline Packaging’s VSA1825 Auto L-Sealer will handle the day to day operation required for automatic sealing and provide you with all the quality features found in much higher priced machines. They are designed and built to give you the performance needed for positive sealing a wide variety of films including polyolefin and polyethylene.

We have film in different sizes and styles to accompany all of our automatic l-sealer machines!

Features

• Designed to seal most polyolefin, polyethylene, and PVC shrink films
• All-welded main frame from 12 gauge steel
• Normal speed infeed and outfeed conveyors
• High speed with product indexing
• Motorized seal height adjustment for various product sizes
• Seal head equipped with pneumatic air cylinder for automatic sealing
• Designed to seal most center-folded polyolefin and polyethylene
• shrink films
• Adjustable pin perforators provide air evacuation

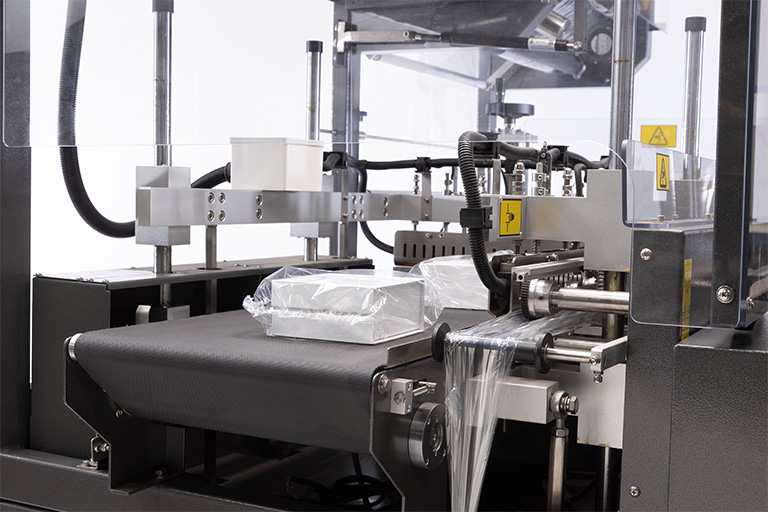

• Infeed and outfeed conveyors run at 100 f/min (30.5 m/min)
• Motorized seal height adjustment to center seal line for various
• product sizes
• Seal head equipped with pneumatic air cylinder for automatic
• sealing

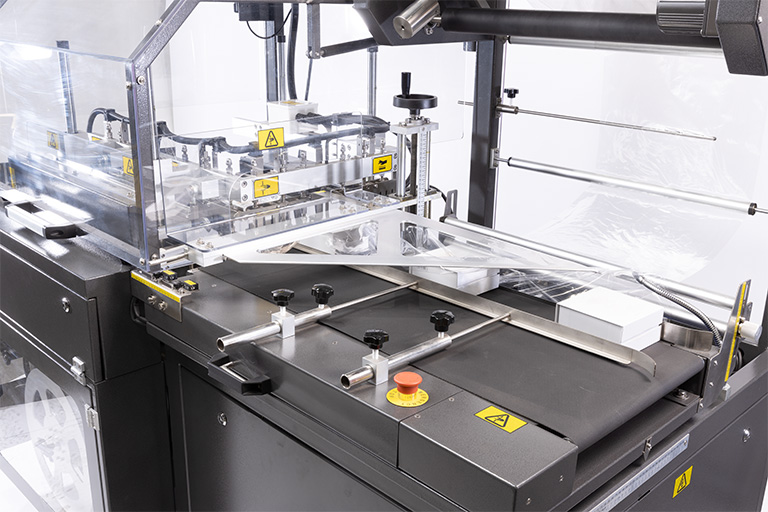

• PTFE hot knife seal bar with vertical cutting motion for consistent
• and clean sea
• Consistent pressure across seal bar
• Automatic cycle timing with adjustable dwell time
• 7” color touchscreen controller for user interface and system setup

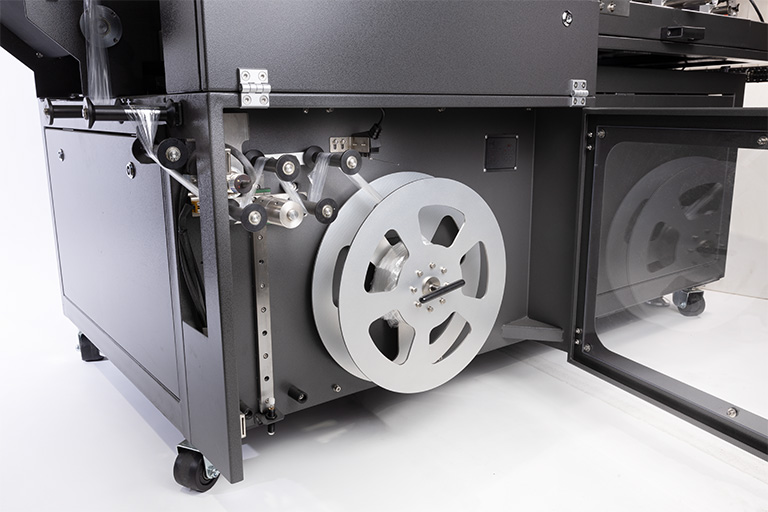

• Film tracking wheels keep film in place; scrap film take-up wheel
• include
• Heavy duty casters and leveling pads for transportation within plant
• Easy to use design requires minimal training and maintenance
• 18”W x 25”L seal area for packages up to 7” tall
• Maximum film width up to 24”

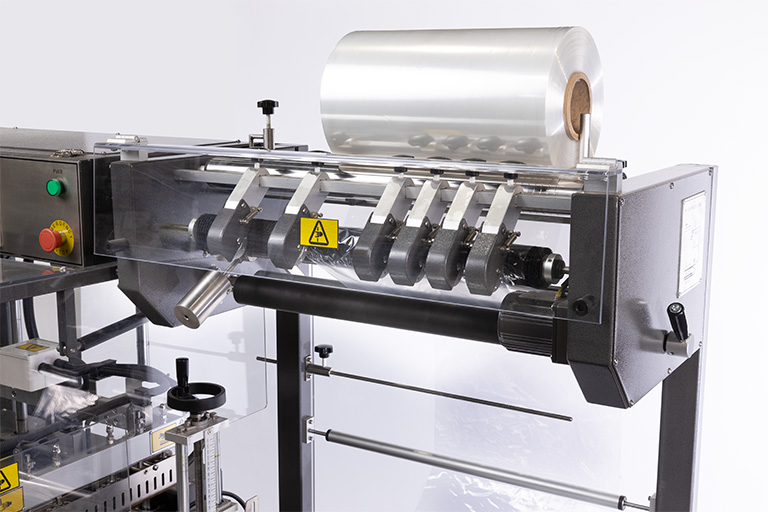

• Maximum film roll OD up to 12”
• 60 – 80 PSI, ¼” NPT fitting
• CE Certification

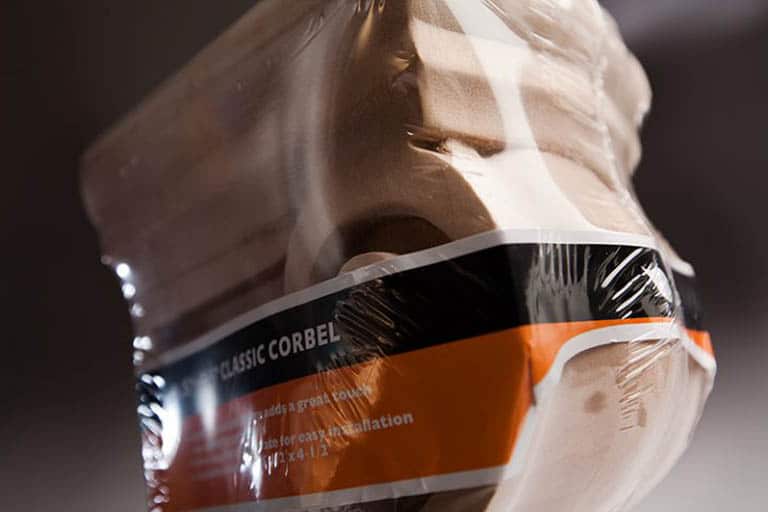

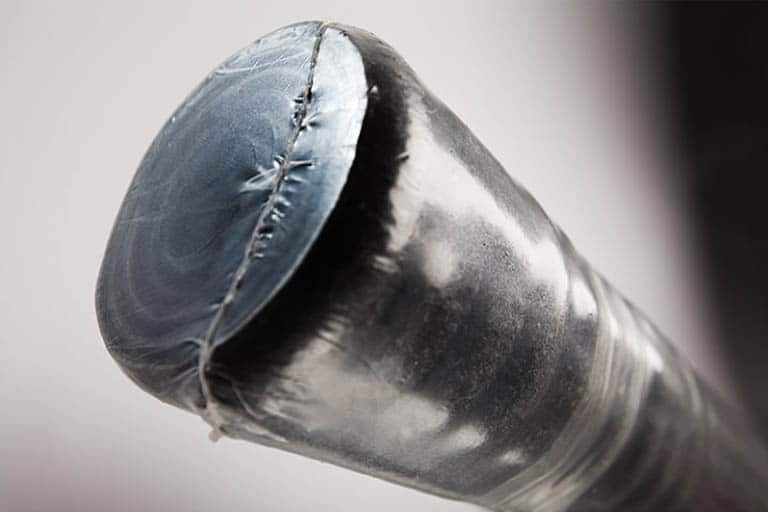

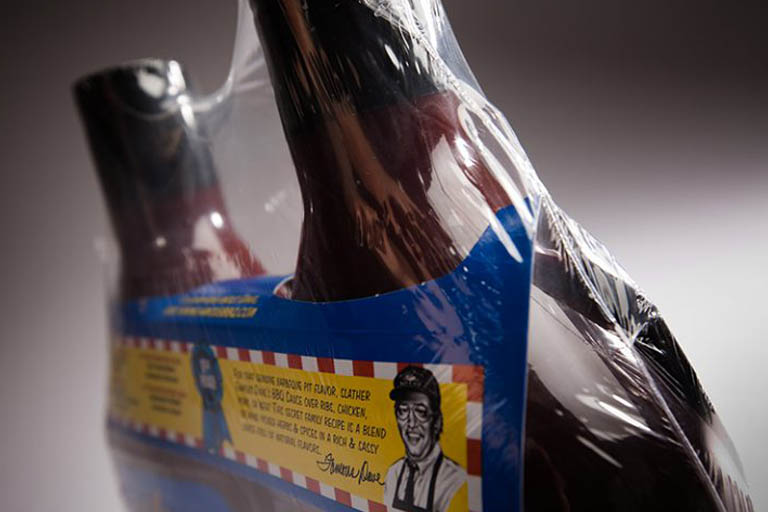

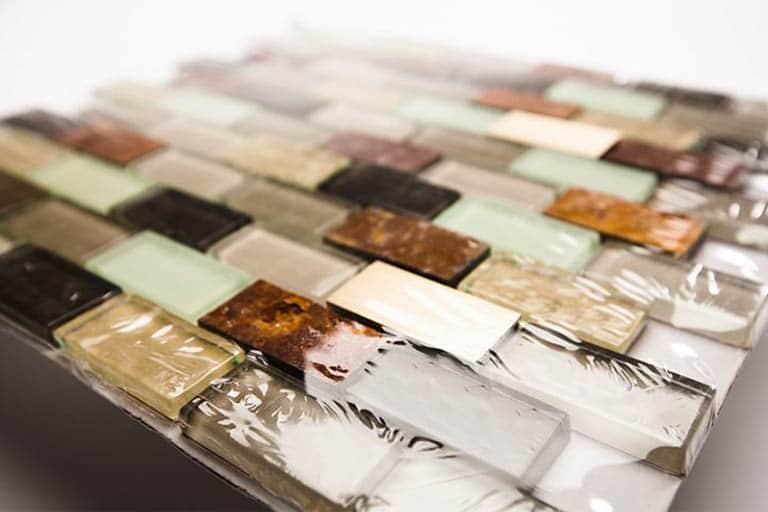

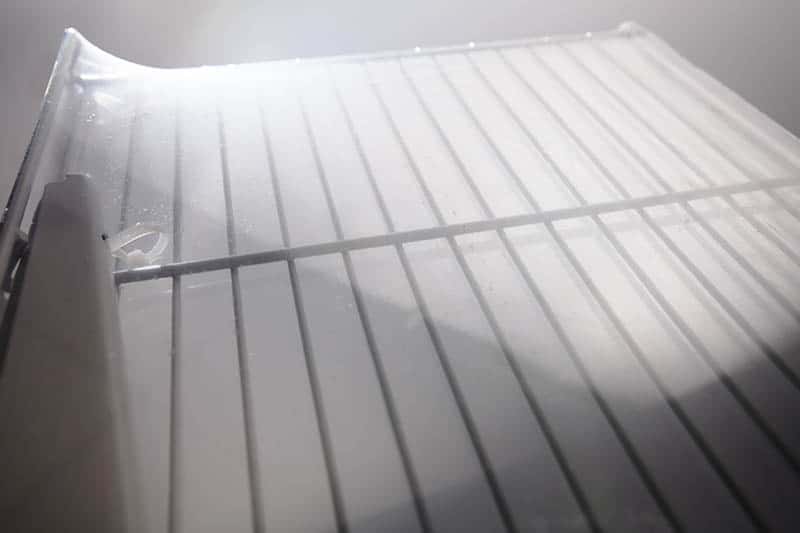

Shrink Samples
