Shrink Sleeve Label Applicator

The SX-350 Shrink Sleeve Label and Tamper Evident Band applicator is a premium range labeling machine designed for middle, full body, and full body and cap applications. The SX-350 is designed for high volume production rates and is a perfect solution for industries including food and beverage, pharmaceutical, nutraceutical, health and beauty, consumer goods, chemical, and other manufactured goods. Due to the versatility of the system, the SX-350 is also ideal for the changing needs of contract packagers.

Components

Multiple dancer in feed tension control

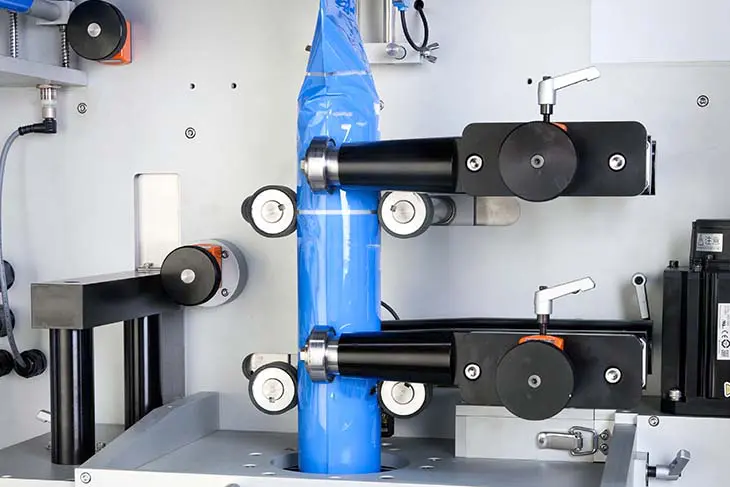

Fin-and-bullet mandrel for cylindrical containers
Photo-eye sensor for registered cutting

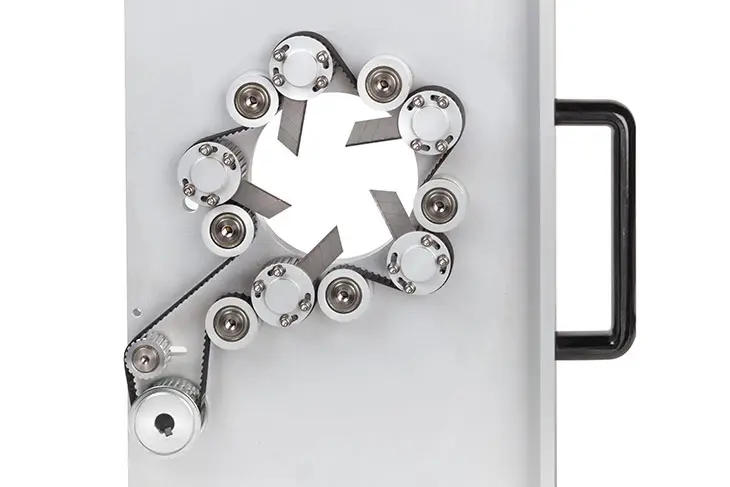

Interchangeable cutting assembly in one of S/M/L sizes
Timing screw assembly with VFD controlled from HMI
Line control photo sensors
Brush-down assembly

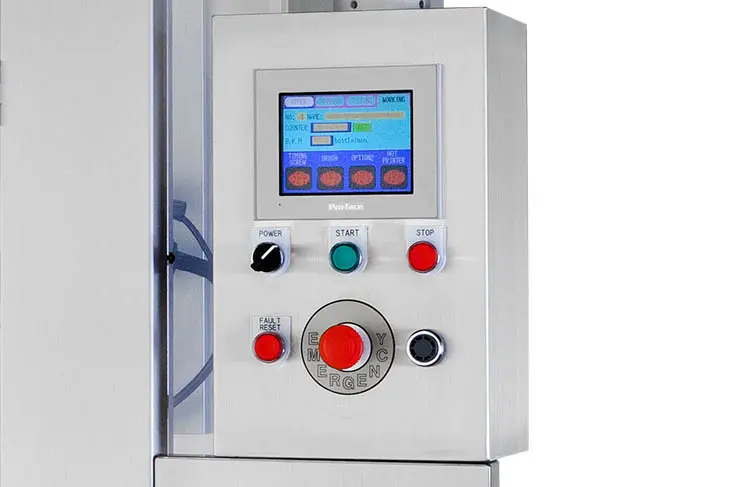

Innovative servo mechanism, PLC and HMI

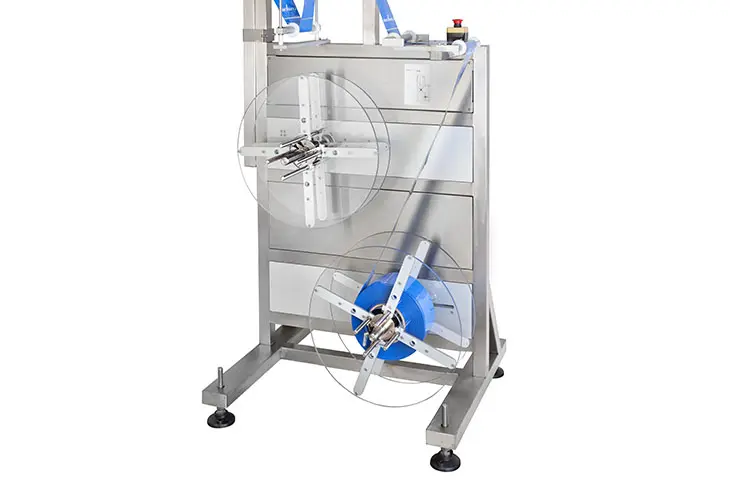

Dual-roll label feeding unwinder
Motorized height adjustment
Diagnostic Software = easy troubleshooting

We have can create custom shrink sleeves and tamper evident bands in different sizes and styles to accompany our shrink sleeve label & tamper evident band applicators!

Technical Specs

Power: 3 Phase 220/380/400/440V 50/60Hz
Film Thickness: 0.035mm – 0.07mm
Film Lay Flat: 50mm – 240mm
Cut Length: 30mm – 200mm
Machine Dimensions: 1275mm (W) x 1250mm (L) x 2111mm (H) 50.2” (W) x 49.2” (L) x 83.1” (H)
Speed: 50 – 500CPM
