Shrink Sleeve Label & Tamper Evident Band Applicator
The SX-150 Shrink Sleeve Label and Tamper Evident Band applicator is a mid-range labeling machine designed for middle, full body, and full body and cap applications. The SX-150 is designed for low to moderate production rates and is a perfect solution for industries including food and beverage, pharmaceutical, nutraceutical, health and beauty, consumer goods, chemical, and other manufactured goods. Due to the versatility of the system, the SX-150 is also ideal for the changing needs of contract packagers.
Components
- Round cylindrical mandrel
- Round Cutter
- Single round 400 mm timing screw
- Photo eye for registered cutting
- Label brush down device
- Dual roll unwind system and tension control
We have can create custom shrink sleeves and tamper evident bands in different sizes and styles to accompany our shrink sleeve label & tamper evident band applicators!
Technical Specs
- Power: 220V/3ph/20A or 480V/3ph/10A; 50/60 Hz
- Film Thickness:035mm – 0.07mm
- Film Lay Flat: 40mm – 240mm
- Cut Length: 40mm – 200mm, or modification to 70mm – 250mm
- Machine Dimensions: 853mm (W) x 1090mm (L) x 1850-2150mm (H) 33.6” (W) x 42.9” (L) x 72.8” – 84.6” (H)
- Speed: 50 – 300CPM
Options
- Irregular mandrel, timing screw, and cutter for non-cylindrical containers
- Dual belt drive system for stopping label for mid-body label applications
- Vertical and T-Perforation units
- Label tamp-down device
- Dual 400mm and 800mm timing screw assemblies for irregular containers
Sleeve & Tamper Evident Band
Sleeve & Tamper Evident Band
Shrink Samples

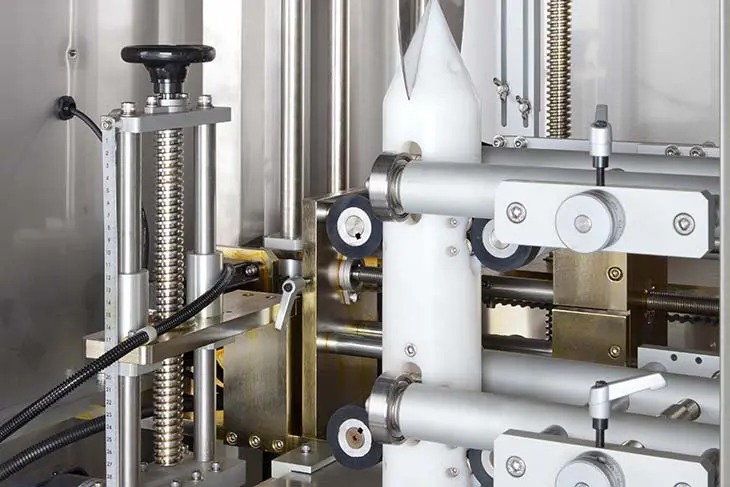

Multiple-Blade Rotational Cutting

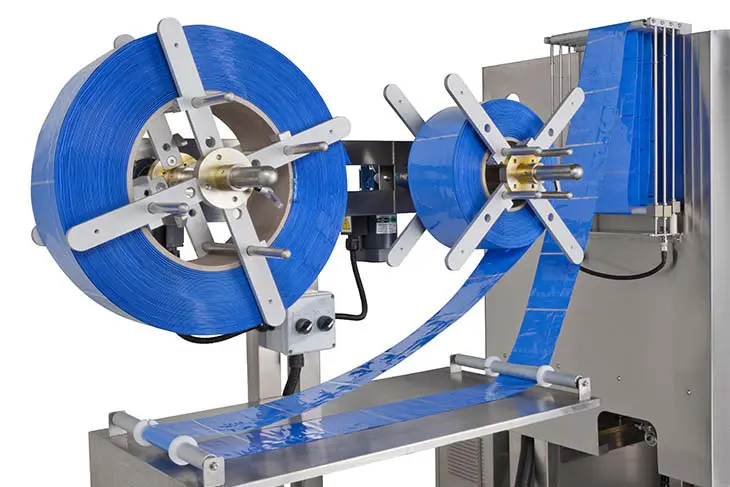

Standard Dual Film Unwinds

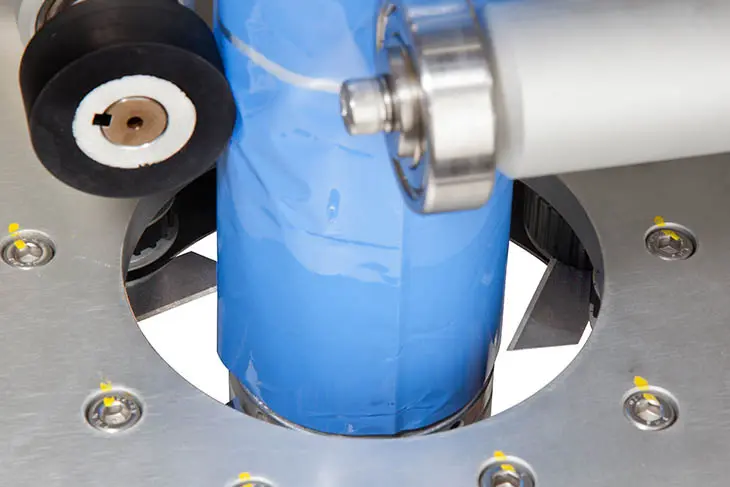

Bullet-Style Mandrel

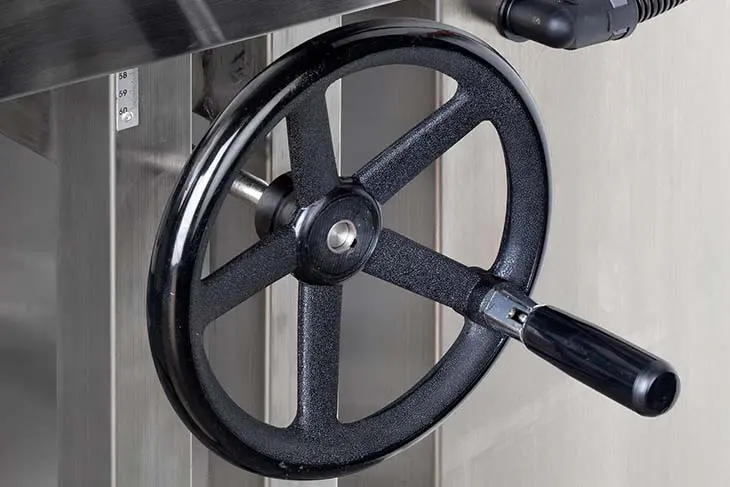

Easy Height Adjustment
