Shrink Sleeve Label & Tamper Evident Band Applicator

The SX-100 Shrink Sleeve Label and Tamper Evident Band applicator is an economy-level labeling machine designed for middle, full body, and full body and cap applications. The SX-100 is designed for low to moderate production rates and is a perfect solution for industries including food and beverage, pharmaceutical, nutraceutical, health and beauty, consumer goods, chemical, and other manufactured goods.

Components

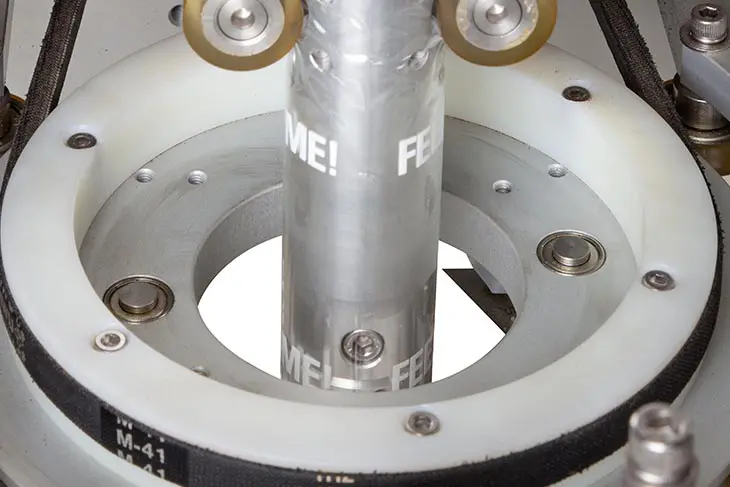

Round cylindrical mandrel
Cutter assembly
Single-timing screw unit
Photo eye for registered cutting
Label brush down device
Single roll unwind and tension control

We have can create custom shrink sleeves and tamper evident bands in different sizes and styles to accompany our shrink sleeve label & tamper evident band applicators!

Technical Specs

Power: 3 Phase 220V or 480V 50/60Hz
Film Thickness:035mm – 0.07mm
Film Lay Flat: 40mm – 160mm
Cut Length: 40mm – 200mm
Machine Dimensions: 904mm (W) x 1462.5mm (L) x 1540-1960mm (H) 35.6” (W) x 57.6” (L) x 60.6” – 77.2” (W)
Speed: 20 – 80CPM
