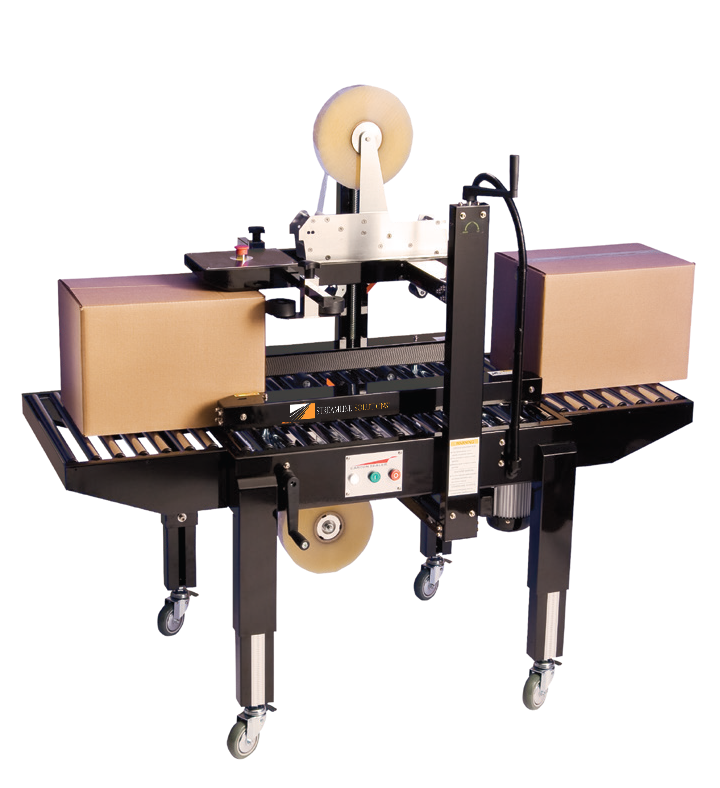

Side Belt Case Taper
Streamline Solutions’ SSB-2EX Case Taper offers the quality that you have come to rely on from Streamline Solutions. The system’s unique and simple design has proven to be one of the most reliable case tapers on the market today, keeping production and maintenance efforts to a minimum and providing fast and efficient alternatives to hand taping.
The SSB-2EX’s side belts are great for light or heavy weight, narrow or small boxes. It is ideal for void-fill cases where the packaged product does not support the box.
VDual 1/4 hp drive motors, aggressive industrial strength drive belts, and roller tables make SSB-2EX a workhorse that will stand up to your toughest challenges. Each case taping machine is made from 12 gauge steel that will withstand even the most rugged applications. A powder coated exterior protects the machine from abusive conditions and guarantees years of use. Best of all, the SSB-2EX is CE certified, so users can be confident it will consistently provide reliable, high quality case sealing.
Technical Specs
- Plug-in and go operation
- Fast and easy box size changes
- Industrial strength side belts
- Interchangeable top and bottom tape cartridges
- Emergency stop button
- Adjustable leg extensions
- Casters for transportation within plant
- Front and rear pack tables to allow for case packing
- Top squeezers push top flaps together for accurate case sealing
- Powder coated 12 gauge steel
- Low maintenance, no air required
Options
- 3” Tape Head – Accepts 3” wide tape rolls
- Stainless Finish – Complete stainless finish to meet specific application requirements
Taping Specs
- Sealer Type – Side belt, top and bottom case sealer
- Machinery Makeup – Industrial strength 12 gauge steel, powdered coated for durability
- Belt Speed – 75 feet/per minute
- Tape Speed – 30 cases/per minute, depending on box size and operator efficiency
- Height Adjustment – Standard adjustable legs for 18.1” to 32.3” conveyor heights
- Tape Size – 2” wide pressure sensitive tape, up to 15” diameter rolls, optional 3” wide tape
- Tape Cartridge – Proven design requires no lubrication, tips back for simple tape threading, removable for maintenance and interchangeable with top or bottom cartridges
- Drive Motor – Two (2) 1/4 HP drive motors
- Electrical Requirements – 110 VAC, 60Hz, 4.0A
- Agency Approvals – CE Certification
Box Specs
- Minimum Box Size – 5″(Length) x 4″(Width) x 4″(Depth)
- Maximum Box Size – Infinite x 19.5″(Width) x 19.5″(Depth)
Interchangeable Top & Bottom Tape Heads

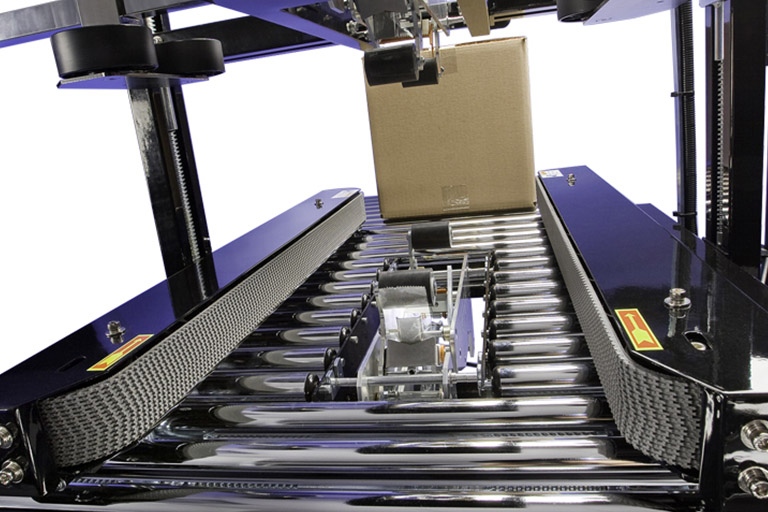

Industrial Strength Rollers

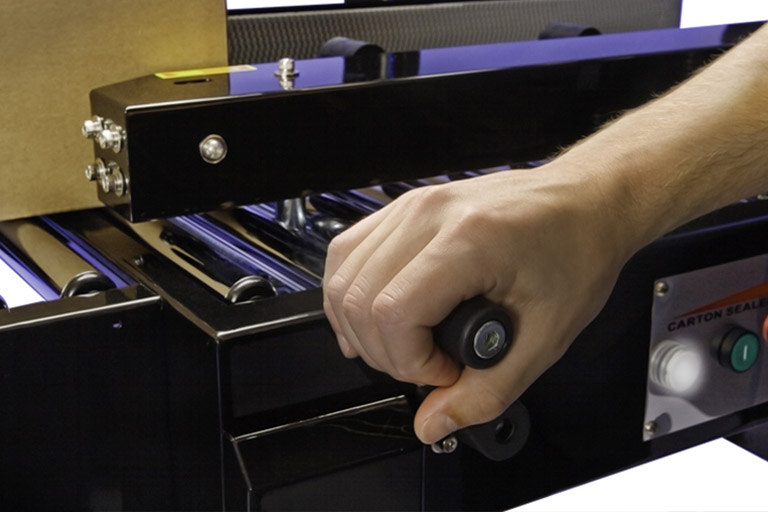

Adjustable Side Rails & Tape Heads
Identical Top & Bottom Tape Heads
