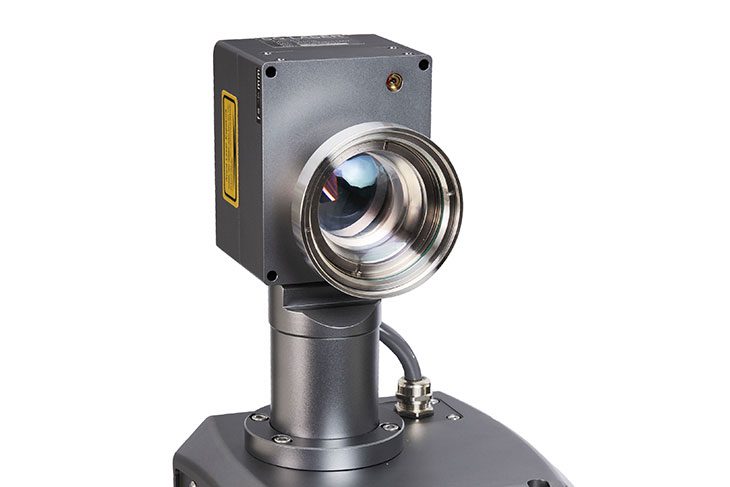

SP10-UV-A Fiber Laser Marking System

Streamline Packaging’s SP10-UV-A water-cooled laser coding systems are designed for high speed food, beverage, pharmaceutical, chemical, pipe and other primary coding applications. The SP10-UV laser utilizes a 355nm wavelength which allows marking to be performed with minimal heat stress. Materials which absorb this wavelength very well include PE, HDPE, LDPE, PP, ABS, PVC, metals, and more.

Application Versatility

• Permanent coding of text, time and date, bar codes, serial numbering and more
• Quick and easy installation for both stationary and moving products
• Compact design easily fits into production environments where space is limited
• Can be integrated in production lines at speeds up to 300m/min
• Laser head can be rotated 90° in less than 5 minutes

We have inks and fluids for all of our printing equipment!

Printing Samples

Optional Accessories

• Print Trigger: Optical, fiber optic, ultrasonic, laser, metal proximity, capacitive proximity
• Encoder: For operation with variable speed conveyors
• Mobile Stands: Heavy duty stand with ability to rotate laser controller in any direction and easily raise and lower marking machine by a single operator; includes casters for easy transportation within plant
• 90 Degree Head Pivot Extension: Mirror assembly that allows marking head to point lens in line with unit axis
• Laser Fume Extraction Systems: SP-LFX or SP-LFX PVC for the proper extraction of laser application fumes
• Installation and Training: On-site installation and training available

System

• Laser Type: 10W UV laser source
• Laser Wavelength: 355nm
• Laser Galvanometer: High-precision 2-dimensional scanning method

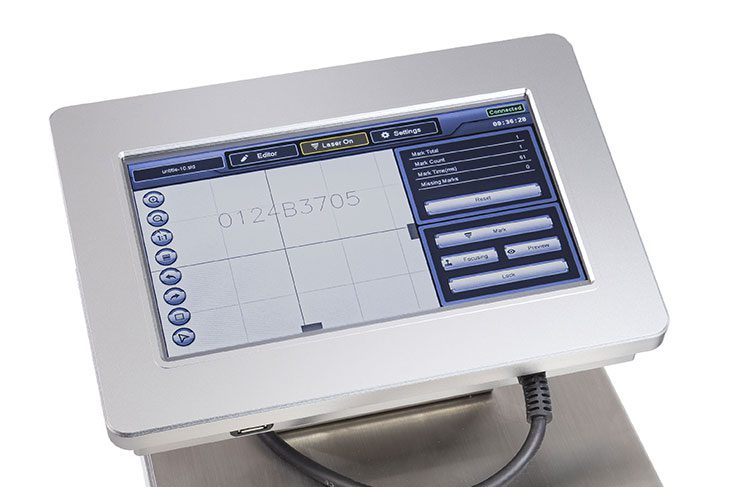

• Controller and Operating System: 10” touchscreen controller running Linux®
• Cooling Method: Water-cooled
• Power Consumption: <1400W
• Marking Area: 90mm x 90mm standard, optional lenses up to maximum 600mm x 600mm
• Reflector Size: 8.5mm
• Production Line Speed: 0 – 300m/min (varies according to substrate and message)
• Marking Speed: up to 1800mm/s
• Character Size: Adjustable in marking area, no character line limits within marking area
• Marking Line Number: Code Rotation – 0 to 360°
• Drawing Types: Dot matrix and vector
• Positioning Method: Red light positioning and auto focusing for simple setup
• Software Features: Counter, lot counter shift code, time and date, expiration date, 2D and linear bar codes
• Bar Code Symbologies: Code128, Code39, QR code, DataMatrix
• Image Formats: bmp, dxf, jpg, plt, png
• Operating Languages: English, Chinese, German, Spanish, French, Italian, Japanese, Korean, Portuguese, Hindi, Russian, Turkish, Arabic, Persian
• Safety Features: Integrated key switch and interlock relay included for safety on the production floor; customer provided shielding necessary to prevent eye or skin exposure
• Interfaces: RS-232C, USB2.0, Ethernet, I/O
• Machine Material: Anodized aluminum (marking head) and stainless steel (control unit)
• Laser Head Dimensions: 29.6” (752mm) x 7.01” (178mm) x 6.65” (169mm)
• Controller Cabinet Dimension: 21.81” (554mm) x 11.61” (296mm) x 36.14” (918mm)
• Electrical Requirements: 90 – 240 VAC, 50/60Hz
• Operating Environment: 32°F – 104°F (0°C – 40°C)
• Humidity Range: 10 – 90% relative humidity, non-condensing
• Machine Weight: 132.3 lbs. (60kg)
• Agency Approval: CE Mark
