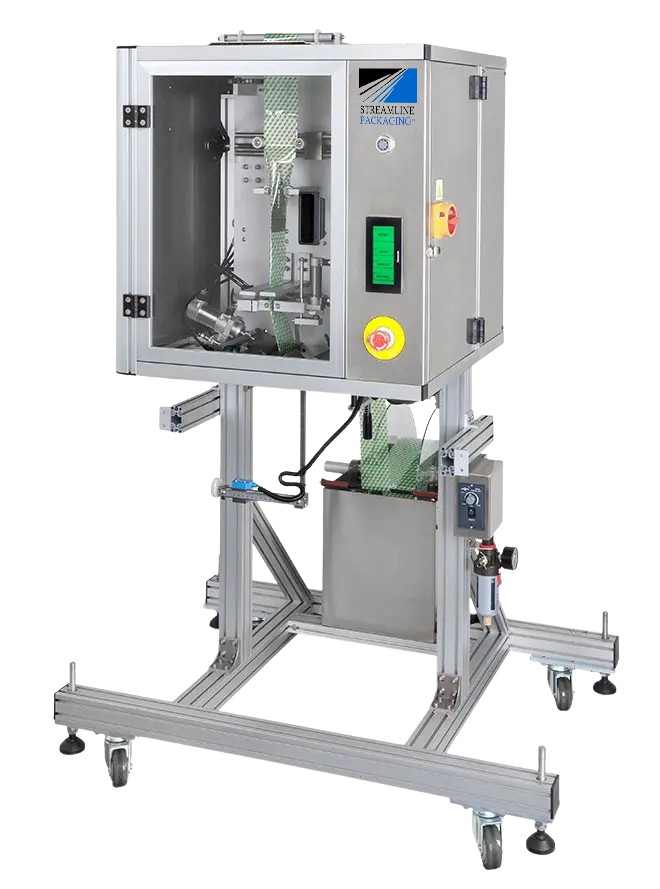

Tamper Evident Band Applicator

The SH -100 Tamper Evident Band applicator is an economy-level shrink band applicator designed to apply tamper-evident bands on a variety of containers. The SH-100 is designed for low to moderate production rates and is a perfect solution for industries including food and beverage, pharmaceutical, nutraceutical, health and beauty, consumer goods, chemical, and other manufactured goods.

Components

Stepper motor driven

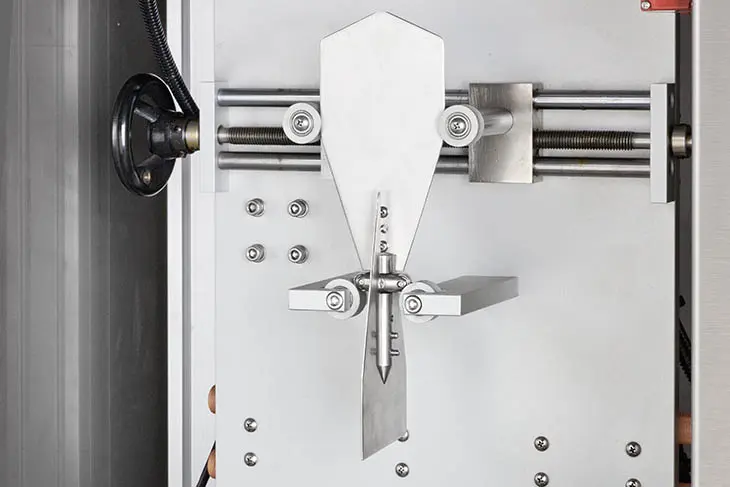

Butterfly mandrel
Pneumatic cutting blade
Photo-eye for registered cutting

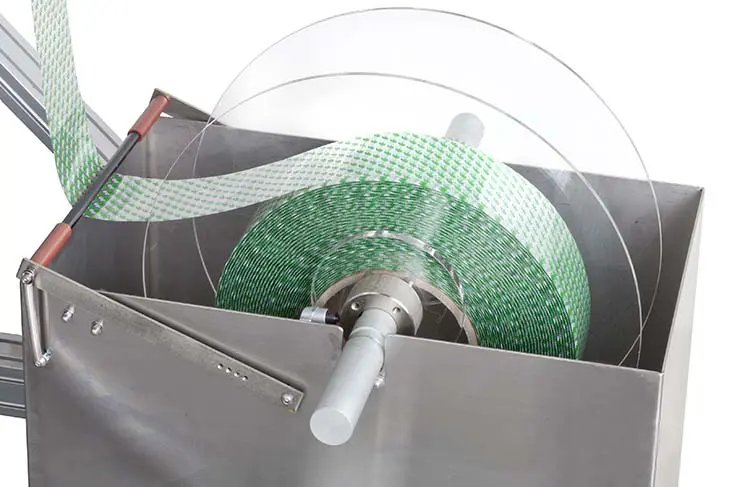

Single unwind system and tension control

We have can create custom shrink sleeves and tamper evident bands in different sizes and styles to accompany our shrink sleeve label & tamper evident band applicators!

Technical Specs

Power: 1 Phase 220V
Film Thickness:05mm – 0.07mm
Film Lay Flat: 40mm – 150mm
Cut Length: 20mm – 50mm
Machine Dimensions: 1000mm (W) x 1130mm (L) x 1620-2000mm (H) 39.4” (W) x 44.5” (L) x 63.8” – 78.7.6” (H)
Speed: 20 – 120CPM; timing screw required for speeds 75 – 120 CPM
