Professional Series Semi-Auto L-Sealers
Streamline Solutions’ Professional Series SSA L-Sealers provide top of the line features and the most robust L-Sealer design on the market today. Expertly welded from ¼” cold rolled steel, Streamline Solutions Professional SSA L-Sealers will withstand even the most abusive real world sealing applications. As a measure of strength, Streamline Solutions L-Sealers weigh nearly twice as much as competitive models.
Streamline Solutions L-Sealers are designed and built to give you all the performance features needed for positive sealing a wide variety of films including polyolefin, polyethylene and PVC. Cast seal arms, pneumatic operation, stainless steel film clamps, and heavy-duty magnet clamping are just some of the features that provide the durability you have come to rely on from Streamline Solutions. See for yourself why Streamline Solutions has been a leader in the shrink packaging industry for over 25 years.
We have film in different sizes and styles to accompany all of our automatic l-sealer machines!
Features
- Designed to seal polyolefin, polyethylene, & PVC films
- All-welded main frame from ¼” cold rolled steel
- Seal head casting equipped with head return cylinder
- Stainless steel film clamps hold film in place
- Dual palm pneumatic seal head activation
- Hot knife in mushroom, pancake, or arrow inserts
- Adjustable dwell time for better seal control
- Takeaway conveyor can be raised or lowered
- Automatic takeaway conveyor
- Adjustable pin perforator provides air evacuation
- Side seal from 20” – 50”; front seal from 16” – 100”
- Maximum film width up to 44”
- Maximum film roll OD up to 12”; 10” with power unwind
- Custom two-part epoxy finish resists scratching
- Available in 110v, 220v, or optional 480v
- 60-80 psi air requirement
- Made in the USA
- *With Hot knife systems only
Options
- Power Film Unwind – Allows free feeding of film increasing operator efficiency
- Film Inverter – Inverting head allows the film to come off the back of machine. This pre-opens the film and minimizes operator effort which in turn increases output
- Hot Knife Inserts – Hot knife inserts available in Mushroom, Pancake, or Arrow styles
- Specialty Models – Stainless steel and left hand models available
- DuoSeal – Continuously Heated Seal Bar
Shrink Samples

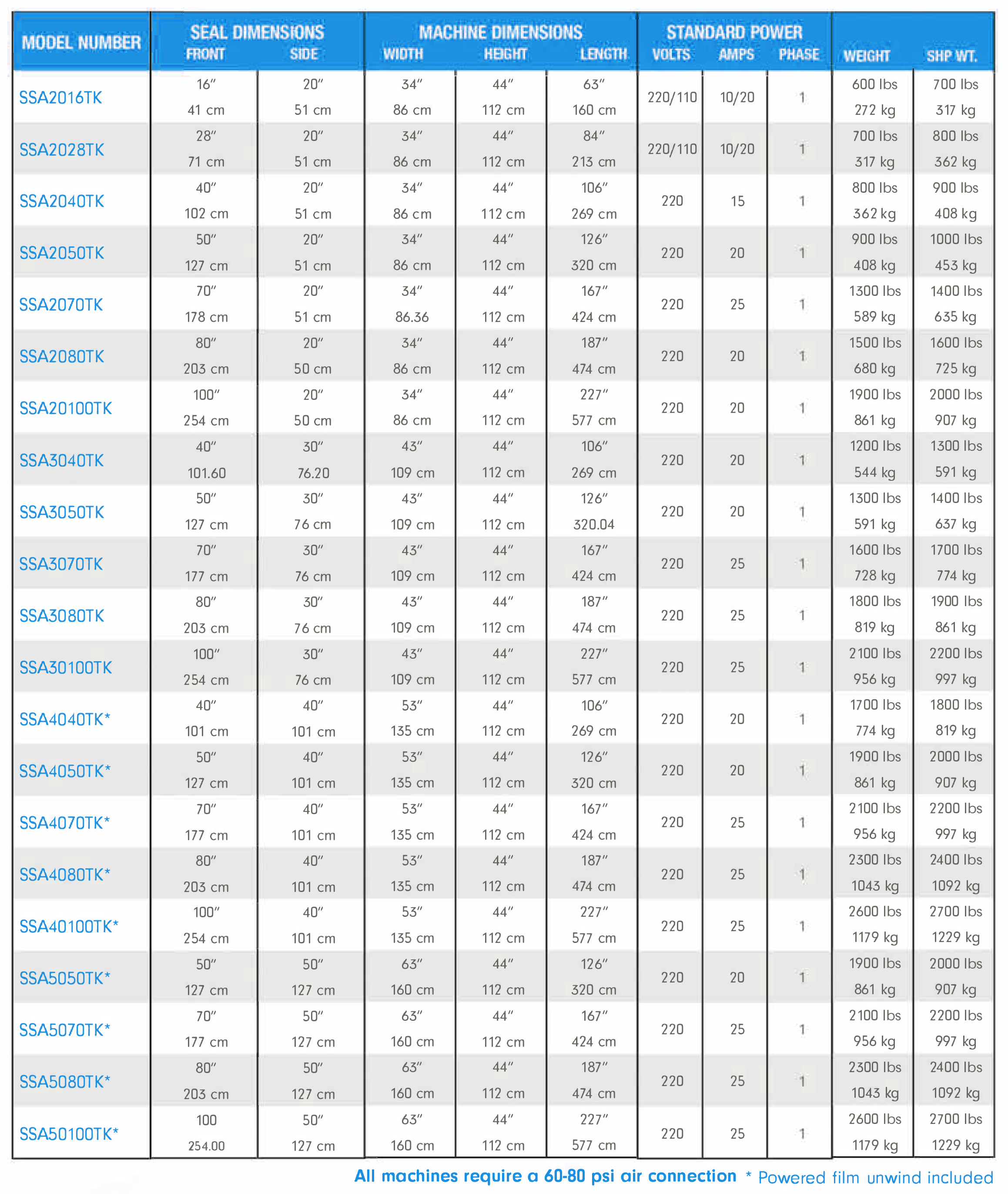

Model Specs
Dual Palm Seal

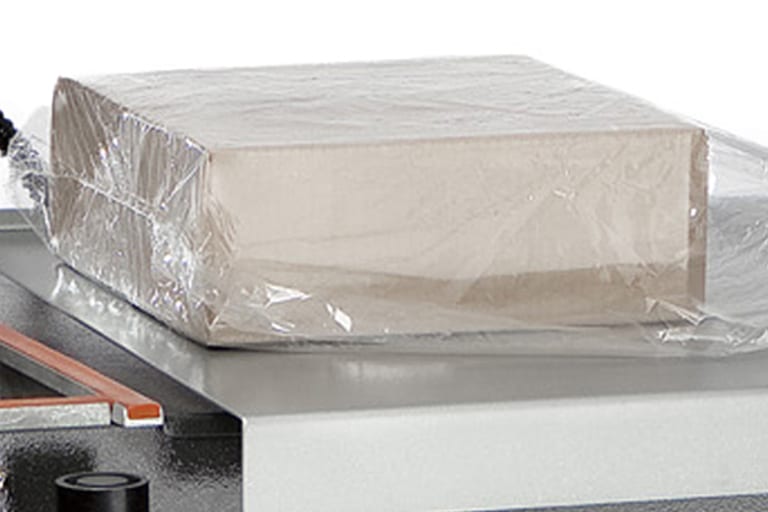

Adjustable Product Tray

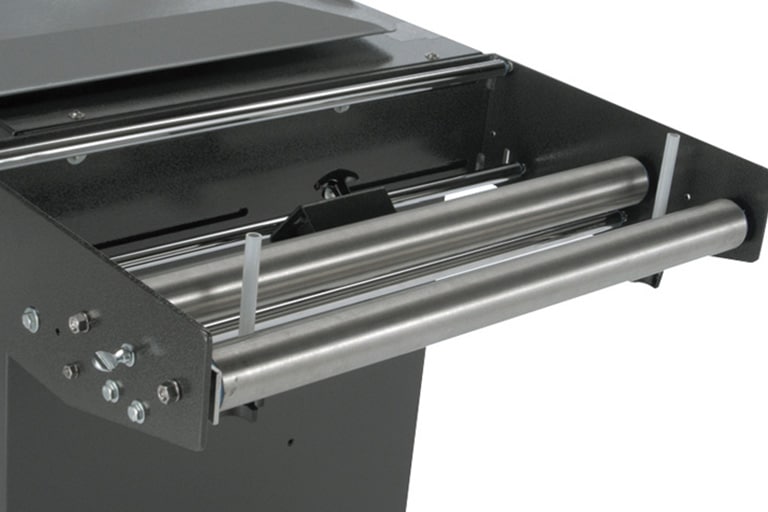

Quick & Easy Film Change

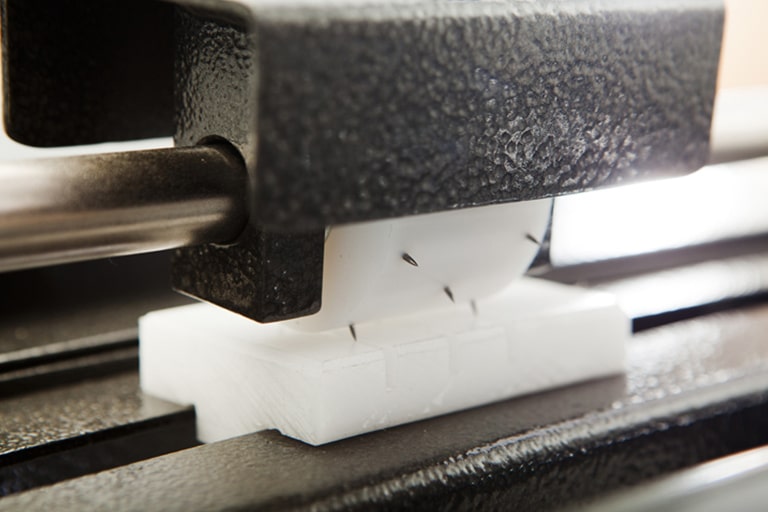

Adjustable Perforator
Low Maintenance Hot Knife

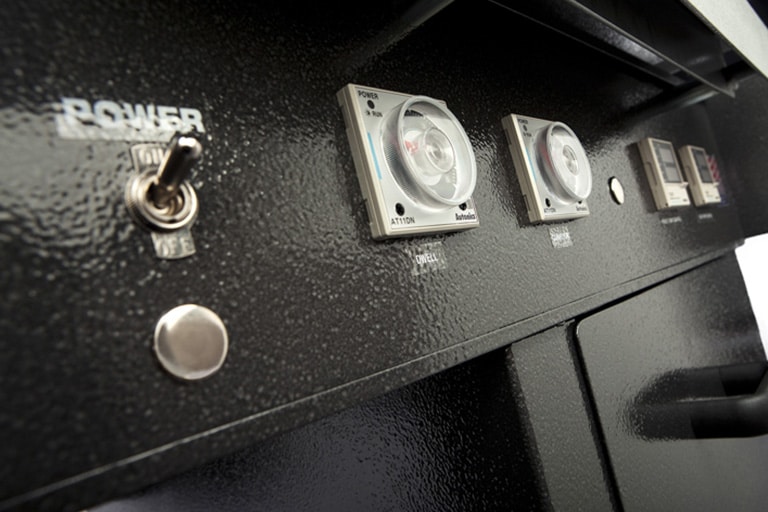

Auto Cycle Timing & Adjustable Dwell Time

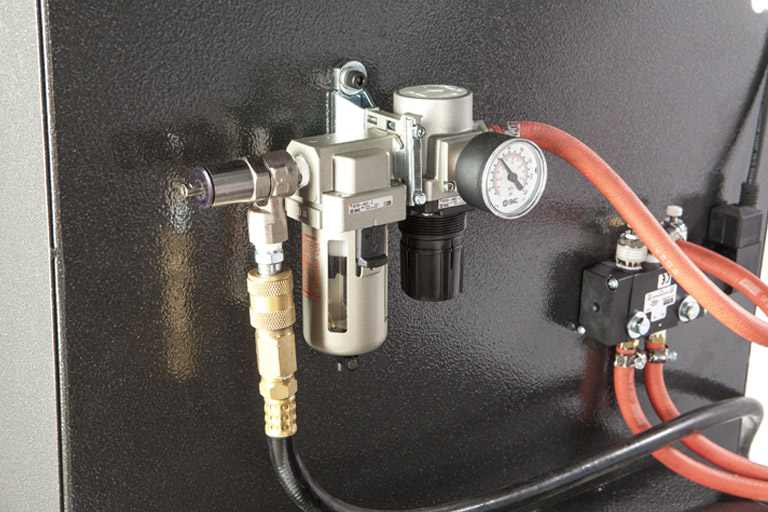

60 – 80 psi Air Manifold

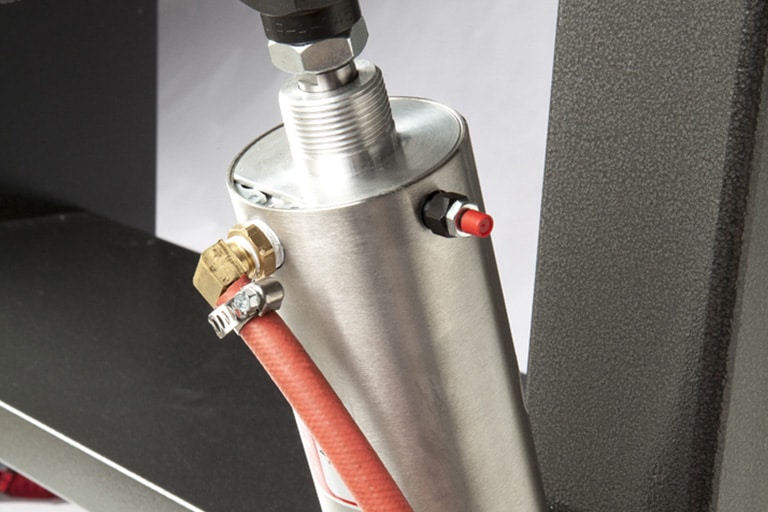

Pneumatic Cylinder
