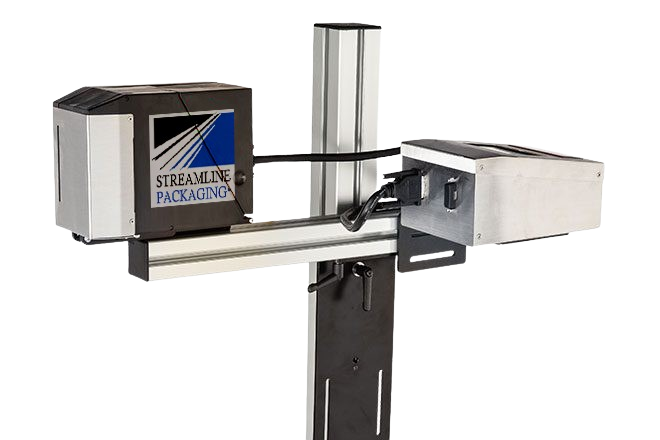

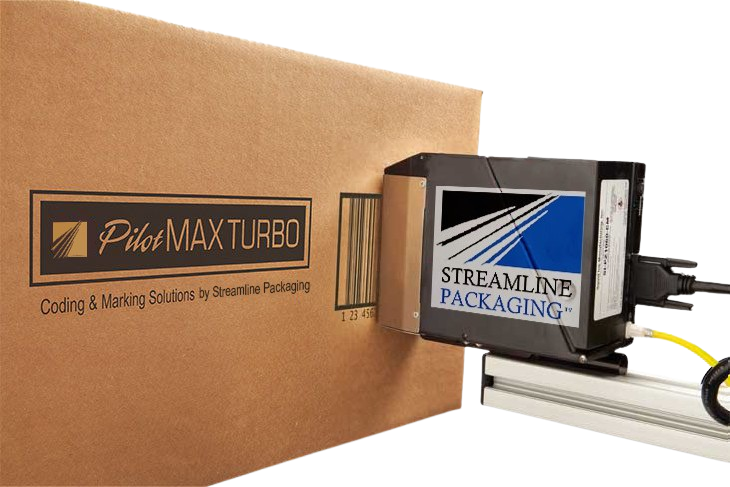

Pilot Max Turbo Hi-Resolution Printer

Streamline Packaging’s Pilot Max Turbo printing system is designed to print superior quality hi-resolution characters on porous or non-porous surfaces. For applications that require immediate dry times on non-porous surfaces, the Pilot Max Turbo also has the capability to run UV LED curable inks. With up to 2.8” of print height per printhead and the ability to run up to 2 printheads from one controller, the Pilot Max Turbo offers a versatile, yet cost effective solution for your coding and marking applications.

Pilot Max Turbo utilizes Streamline Packaging’s revolutionary active ink system, allowing users the ability to tilt or rotate the printhead in any direction without making height adjustments to the ink supply. The system prints hi-resolution characters, razor-sharp text, scannable bar codes and great looking logos at up to 360 dpi, nearly twice the resolution of competitive printers in its class.

We have inks and fluids for all of our printing equipment!

Printing Samples

Benefits

• Run up to two 2.8″ printheads from a single controller
• Print up to 2.8” of hi-resolution characters, razor-sharp text, scannable bar codes, and great looking logos at 360 dpi
• Pilot Max’s 4.3″ full color touchscreen provides access to the system’s internal messages and print functions
• Compatible with Streamline Solutions easy-to-use Orion™ message creation PC software

Software

• Time & Date – Full time and date functionality including expiration date and Julian Dates.
• Item Numbering – Sixteen counters, one of which can be a daily counter and production counter
• Shift Codes – Four programmable shift codes with automatic rollover
• Bar Codes – All standard bar codes including 2D
• Fonts – Arial, Arial Bold, Arial International, Arial Monospaced, Courier, Tahoma Bold and Lucida resident fonts for use in variable data elements. Static elements in any Windows® font
• Logos – Most image files supported with Orion software
• Printing Features – Reverse, invert, rotate, repeat; print on/off button
• Message Length – Up to 120” (3.05 m)
• Number of Messages – 1GB storage space will store approximately 1000+ messages
• Ink Usage – Shown in Orion software
• User Data Prompts – Prompts for user input at start of print job by manual input on touchscreen
• Wireless Connectivity – For wireless connection between PC or tablet and printer controller
• Database Capability – Ethernet communication protocol for external communication
• Languages – English, Spanish, German, Chinese, Japanese, Korean, Russian, Polish

System

• Print Technology – Piezo impulse printhead technology
• Maximum Print Height – 2.8” (7.1 cm) per printhead
• Vertical Print Resolution – 360 dpi capable of printing razor-sharp graphics, small character text, and scannable bar codes
• Horizontal Print Resolution – 150 dpi or 300 dpi
• Print Speed – Up to 220 ft/min at 150 dpi; Up to 110 ft/min at 300 dpi
• Time & Date – Internal real time clock with battery back-up
• Product Sensor – External photocell or optional encoder
• Communication Interface – One USB host and one Ethernet input
• Touchscreen – 4.3” (10.9 cm) full color touchscreen display
• Ink Cartridge Volume – 500ml cartridge
• Low Ink Indicator – Status alert on touchscreen, LED light beacon optional
• Substrate Capabilities – Porous or non-porous surfaces
• Electrical Requirements – 100 – 240 VAC, 50/60 Hz, 216VA maximum
• Operating Environment – 34°F – 104°F (1° – 40°C)
• Agency Certifications – CE

Optional Accessories

• Encoder – For operation with variable speed conveyors
• Bar Code Laser Scanner – Allows scan and print message retrieval
• External Light Beacon – Indicates low ink levels
• Wireless USB Device and Router – For wireless connectivity
• Windows Tablet – Pre-loaded with Orion software; includes mounting bracket with swivel arm, USB to ethernet cable and stylus
• Conveyor Mounting Bracket – Provides stable mount to conveyor or other material handling equipment
• Floorstand – Includes mounting brackets and legs with leveling feet; 59” (1.5m) total height
• Spring Loaded Printhead Bracket – Provides consistent throw distance with inconsistent boxes or products
• Starter Kit – Includes ink, cleaner and flush solution, printhead wipes, hand cleaner and latex gloves
