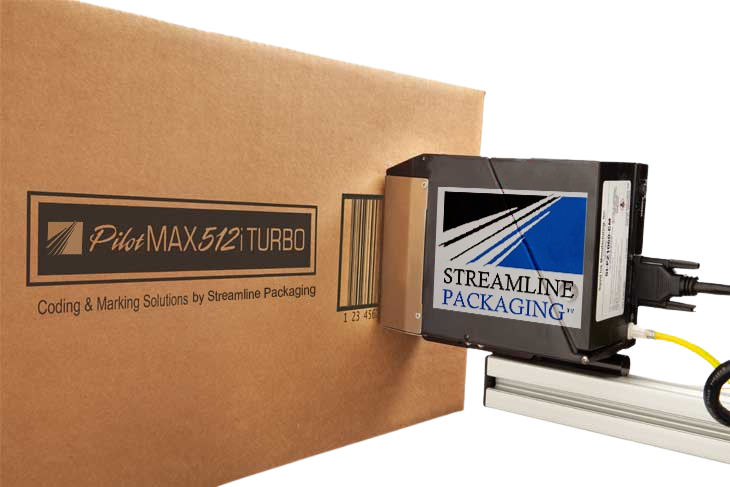

Pilot Max 512i Turbo Hi-Resolution Printer

Streamline Packaging’s Pilot Max 512i Turbo printing system is designed to print superior quality hi-resolution characters on porous or non-porous surfaces. For applications that require immediate dry times on non-porous surfaces, the Pilot Max 512i Turbo also has the capability to run UV LED curable inks. With up to 2.8″ of print height per print head, print speeds up to 480 ft/min, and the ability to run up to 2 print heads from one controller, the Pilot Max 512i Turbo provides a cost-effective solution for making your mark on a wide variety of products and substrates.

The Pilot Max 512i Turbo controller features increased processing power to print the messages you want when you want to print them. Faster GUI response time and near-immediate message rendering times allow the Max 512i to keep up with the demands of your fast-paced manufacturing environment.

We have inks and fluids for all of our printing equipment!

Printing Samples

Benefits

• Run up to two 2.8″ print heads from a single controller
• Print up to 2.8″ of hi-resolution characters, razor-sharp text, scannable bar codes, and great-looking logos at 180 dpi
• Pilot Max’s 4.3″ full-color touchscreen provides access to the system’s internal messages and print functions
• Compatible with Streamline Packaging’s easy-to-use Orion™ message creation PC software

Software

• Time & Date – Full time and date functionality including expiration date and Julian Dates.
• Item Numbering – Sixteen counters, one of which can be a daily counter and production counter
• Shift Codes – Four programmable shift codes with automatic rollover
• Bar Codes – All standard bar codes, including 2D
• Fonts – Arial, Arial Bold, Arial International, Arial Monospaced, Courier, Tahoma Bold, and Lucida resident fonts for use in variable data elements. Static elements in any Windows® font
• Logos – Most image files are supported with Orion software
• Printing Features – Reverse, invert, rotate, repeat; print on/off button
• Message Length – Up to 120″ (3.05 m)
• Number of Messages – 1 GB storage space will store approximately 1000+ messages
• Ink Usage – Shown in Orion software
• User Data Prompts – Prompts for user input at the start of the print job by manual input on the touchscreen
• Wireless Connectivity – For wireless connection between PC or tablet and printer controller
• Database Capability – Ethernet communication protocol for external communication
• Languages – English, Spanish, German, Chinese, Japanese, Korean, Russian, Polish

System

• Print Technology – SPiezo impulse print head technology
• Maximum Print Height – 2.8″ (7.1 cm) per print head
• Vertical Print Resolution – 180 dpi capable of printing razor-sharp graphics, small character text, and scannable bar codes
• Horizontal Print Resolution – 205 dpi
• Print Speed – Up to 480 ft/min at 205 dpi
• Time & Date – Internal real-time clock with battery back-up
• Product Sensor – External photocell or optional encoder
• Communication Interface – One USB host and one Ethernet input
• Touchscreen – 4.3″ (10.9 cm) full-color touchscreen display
• Ink Cartridge Volume – 500ml cartridge
• Low Ink Indicator – Status alert on the touchscreen, LED light beacon optional
• Substrate Capabilities – Porous or non-porous surfaces
• Electrical Requirements – 100 – 240 VAC, 50/60 Hz, 216VA maximum
• Operating Environment – 34°F – 104°F (1° – 40°C) with PZ1525 low temp oil-based ink
• Agency Certifications – CE

System

• Encoder – For operation with variable speed conveyors
• Bar Code Laser Scanner – scan and print message retrieval
• External Light Beacon – Indicates low ink levels
• Wireless USB Device and Router – For wireless connectivity
• Windows Tablet – Pre-loaded with Orion software; includes mounting bracket with swivel arm, USB to Ethernet cable, and stylus
• Conveyor Mounting Bracket – Provides stable mount to conveyor or other material handling equipment
• Floor stand – Includes mounting brackets and legs with leveling feet; 59″ (1.5 m) total height
• Spring Loaded Print head Bracket – Provides consistent throw distance with inconsistent boxes or products
• Starter Kit – Includes ink, cleaner and flush solution, print head wipes, hand cleaner, and latex gloves
