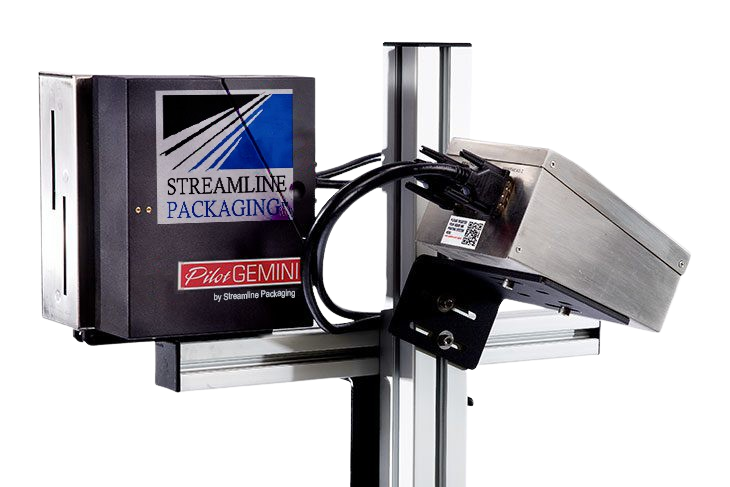

Pilot Gemini Hi-Resolution Printer

Streamline Packaging’s Pilot Gemini printing system is designed to print superior quality hi-resolution characters on porous or non-porous surfaces. For applications that require immediate dry times on non- porous surfaces, the Pilot Gemini also has the capability to run UV LED curable inks. With a massive 5.6” of print height and print speeds up to 220 ft/ min, the Pilot Gemini provides a cost effective solution for making your mark on a wide variety of products and substrates.

The Pilot Gemini is designed for label replacement. Featuring Streamline Packaging’s largest printhead with up to 5.6” of print height, the Pilot Gemini prints high quality 360 dpi GS1 barcodes with ease. And don’t forget that ink jet consumable costs are typically 1/10 of the cost of thermal transfer labels and eliminate preprinted cartons and SKUs of label and ribbon inventory. Get rid of the label and print directly on cartons and cases! Any way you look at it, Streamline Packaging’s Gemini provides users with an affordable solution to meet their ink jet coding needs.

We have inks and fluids for all of our printing equipment!

Printing Samples

Benefits

• Print Technology – Piezo impulse printhead technology
• Maximum Print Height – 5.6” (14.2 cm)
• Vertical Print Resolution – 360 dpi capable of printing razor-sharp graphics, small character text, and scannable bar codes
• Horizontal Print Resolution – 150 or 300 dpi

Software

• Time & Date – Full time and date functionality including expiration date and Julian Dates.
• Item Numbering – Sixteen counters, one of which can be a daily counter and production counter
• Shift Codes – Four programmable shift codes with automatic rollover
• Bar Codes – All standard bar codes including 2D
• Fonts – Arial, Arial Bold, Arial International, Arial Monospaced, Courier, Tahoma Bold and Lucida resident fonts for use in variable data elements. Static elements in any Windows^® font
• Logos – Most image files supported with Orion software
• Printing Features – Reverse, invert, rotate, repeat; print on/off button
• Message Length – Up to 120” (3.05 m)
• Number of Messages – 1GB storage space will store approximately 1000+ messages
• Ink Usage – Shown in Orion software
• User Data Prompts – Prompts for user input at start of print job by manual input on touchscreen
• Wireless Connectivity – For wireless connection between PC or tablet and printer controller
• Database Capability – Ethernet communication protocol for external communication
• Languages – English, Spanish, German, Chinese, Japanese, Korean, Russian, Polish

System

• Print Technology – Piezo impulse printhead technology
• Maximum Print Height – 5.6” (14.2 cm)
• Vertical Print Resolution – 360 dpi capable of printing razor-sharp graphics, small character text, and scannable bar codes
• Horizontal Print Resolution – 150 or 300 dpi
• Print Speed – Up to 220 ft/min at 150 dpi; up to 110 ft/min at 300 dpi
• Time & Date – Internal real time clock with battery back-up
• Product Sensor – External photocell or optional encoder
• Communication Interface – One USB host and one Ethernet input
• Touchscreen – 4.3” (10.9 cm) full color touchscreen display
• Ink Cartridge Volume – 500ml cartridge
• Low Ink Indicator – Status alert on touchscreen, light beacon optional
• Substrate Capabilities – Porous or non-porous surfaces
• Electrical Requirements – 100 – 240 VAC, 50/60 Hz, 216VA maximum
• Operating Environment – 34–104°F (1–40°C)
• Agency Certifications – CE

Optional Accessories

• Encoder – For operation with variable speed conveyors
• Bar Code Laser Scanner – Allows scan and print message retrieval
• External Light Beacon – Indicates low ink levels
• Wireless USB Device and Router – For wireless connectivity
• Windows Tablet – Pre-loaded with OrionTM software; includes mounting bracket with swivel arm, USB to ethernet cable and stylus
• Conveyor Mounting Bracket – Provides stable mount to conveyor or other material handling equipment
• Floorstand – Includes mounting brackets and legs with leveling feet; 59” (1.5m) total height
• Spring Loaded Printhead Bracket – Provides consistent throw distance with inconsistent boxes or products
• Starter Kit – Includes ink, cleaner and flush solution, printhead wipes, hand cleaner and latex gloves
