Case Former (SXCF)
The SX-CF Case Former from Streamline Packaging is designed for semi-automatic case forming and packing. The durable design has proven to keep production and maintenance efforts to a minimum to improve your case packing process. The SX-CF Case Former provides a fast and cost-efficient alternative to manual case forming.
The SX-CF Case Former enables a single operator to form, pack, and seal corrugate cases. Operation is simple: open the case and place it in the top of the case former. Pneumatic switches activate the machine’s flap folding mechanism to fold the bottom major and minor flaps. Once the flaps are folded, the case will stay in place while the case is filled by the operator. Filled cases can then be advanced into a taper for automated top and bottom case-sealing.

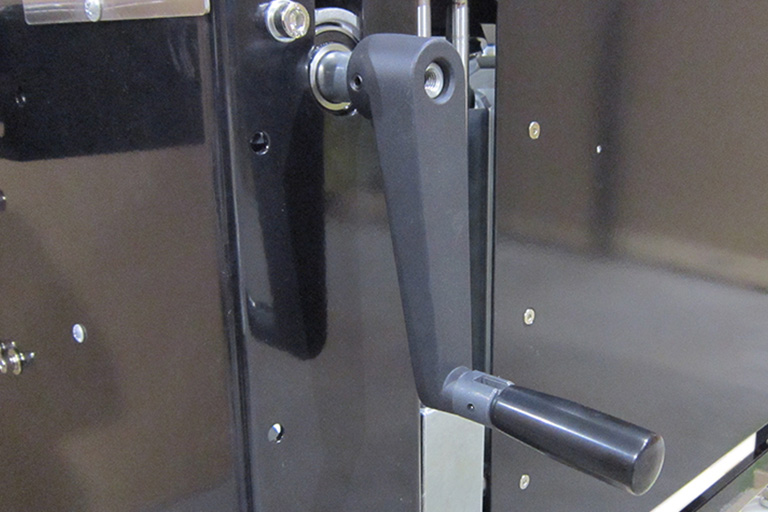

SX-CF Case Former offers fast and easy case size changes with adjustable hand-crank side rails to accommodate boxes 8” to 25.5” in length, 6” to 19” wide, and 3.5” tall and greater.
Features
- Plug-in and go operation
- Adjustable side guides
- Adjustable foot extensions
- Fast and easy box size changes
- Low maintenance
- Accommodates wide case range
- Roller extension included for wide boxes
- Small exit roller table included
SXCF Specs
- Machinery Makeup – Industrial strength 12 gauge steel, powder coated for durability
- Conveyor Height Adjustment – 23.75” (603mm) to 29.75” (756mm) with leveling legs; 27.25” (692mm) to 33.25” (845mm) with optional casters
- Air Requirements – 80 PSI
- Electrical Requirements – None
- Agency Approvals – CE Certification
Box Specs
- Minimum Box Size – 8″ (203.2mm) (Length), 6″ (152.4mm) (Width), 3.5″ (88.9mm) (Depth)
- Maximum Box Size – 25.5″(647.7mm) (Length), 19″ (482.6mm) (Width), Unlimited (Depth

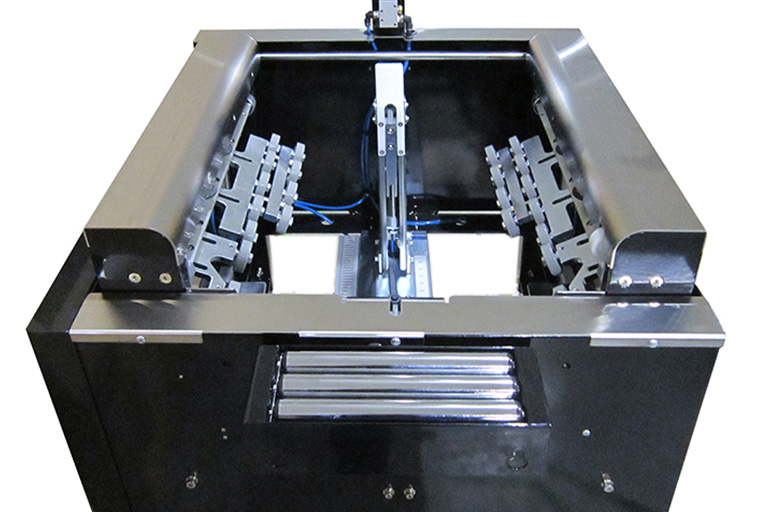

Stainless Steel
Easily Adjustable
Air Only Operation

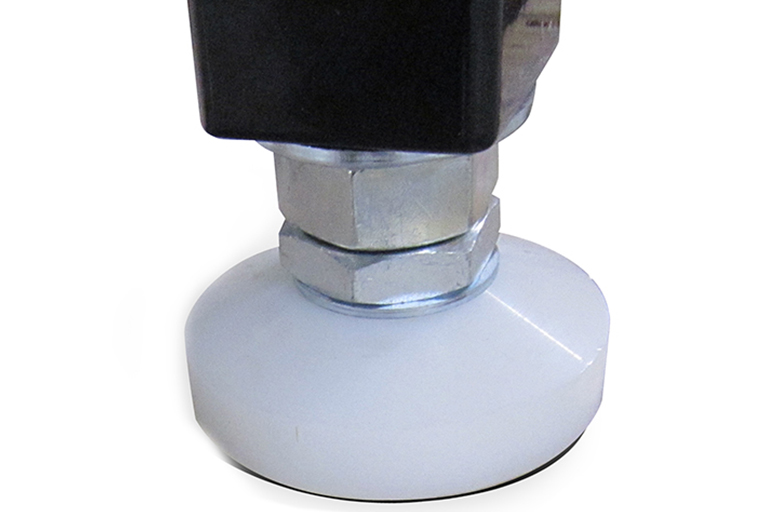

Adjustable Foot Extensions
