Accumulation Table
Streamline Packaging’s variable speed accumulation tables are an ideal solution for product accumulation or surge back-up. Models are available in 36” or 48” diameters.
Streamline Packaging’s accumulation tables are used to temporarily stop, hold, and release bottles, cans, jars, or other containers after they are filled or cleaned. Streamline Packaging’s accumulation tables are an efficient method to balance production line rates, allowing production to continue while downstream product is halted. They also facilitate product removal for packing and prevent product damage that can occur when a production line is stopped.
TT36 and TT48 accumulation tables offer the quality that you have come to rely on from Streamline Packaging. A stainless steel turntable, variable speed motor, dual direction drive, and simple design make Streamline Packaging’s accumulation tables a workhorse that will stand up to your toughest challenges. Each table is framed with tubular steel to withstand even the most rugged applications. A powder coated exterior protects the machine base from abusive conditions and guarantees years of use. For food applications, an optional stainless base is available.
Features
- Large 36” or 48” diameter turntable tub with adjustable 5” deep sidewall
- Adjustable side guides
- Easy to clean stainless steel tub
- Variable speed drive
- Dual direction drive for clockwise / counter-clockwise operation
- Smooth, consistent turntable speed
- Adjustable leveling feet or optional casters
- Adjustable height (27” to 37”)
- Single plug 115V power supply
- Heavy duty rugged design
Options
- Transfer Plate – Butts up to the conveyor to provide a smooth transfer onto the Accumulation Table
- Dead Plate – Small plate that accumulates products in a row for the user to quickly grab for packing
- Packout Table – Larger table that accumulates products for the user to grab for packing; holds more products than the Dead Plate
- Product Diverter – Pushes product to the outer edge of the Accumulation Table
- Product Wedge – Pushes product to the middle of the Accumulation Table
- Casters – Lockable casters for easy movement throughout the plant
- Stainless Base – All stainless-steel base for food applications
Table Specs
- Model TT36 – 36.0” table diameter, 24.0” base length, 24.0″ base width, 260 lbs. weight
- Model TT48 – 48.0” table diameter, 24.0” base length, 24.0″ base width, 340 lbs. weight
- Machinery Makeup – Industrial strength tubular steel frame with powder coated steel base; or optional stainless steel base for food applications
- Working Height – Adjustable 27” to 37” height
- Variable Speed – Up to 13 revolutions per minute
- Electrical Requirements – 115V or 220V, 5A single phase with ground
- Approximate Weight Capacity – 200 lb. maximum weight @ 80% Speed
Box Specs
- Minimum Box Size – 8″ (203.2mm) (Length), 6″ (152.4mm) (Width), 3.5″ (88.9mm) (Depth)
- Maximum Box Size – 25.5″(647.7mm) (Length), 19″ (482.6mm) (Width), Unlimited (Depth

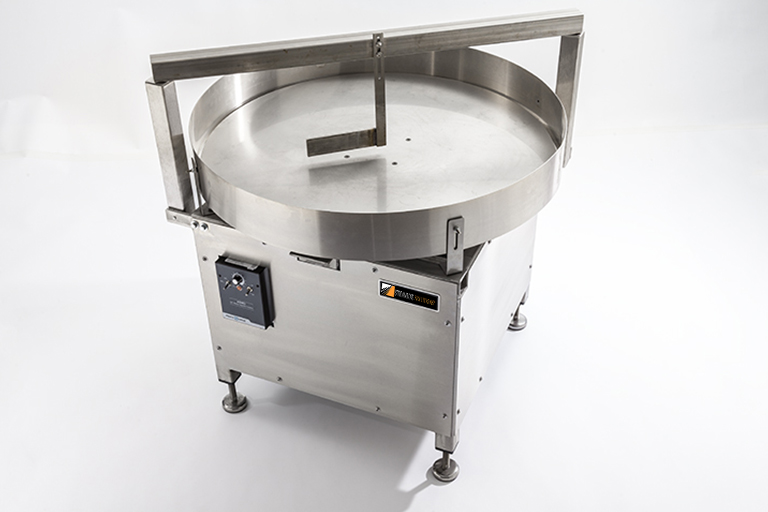

Frame & Divider Paddle
Available in 36” or 48” Diameters

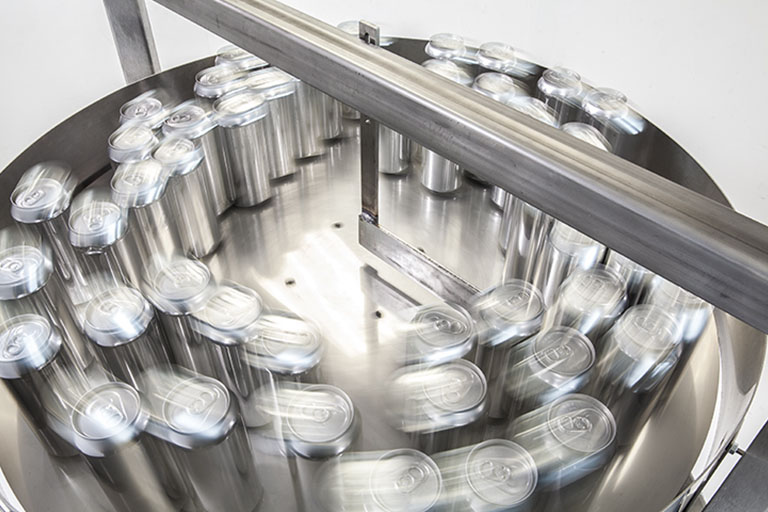

Dual Direction Drive

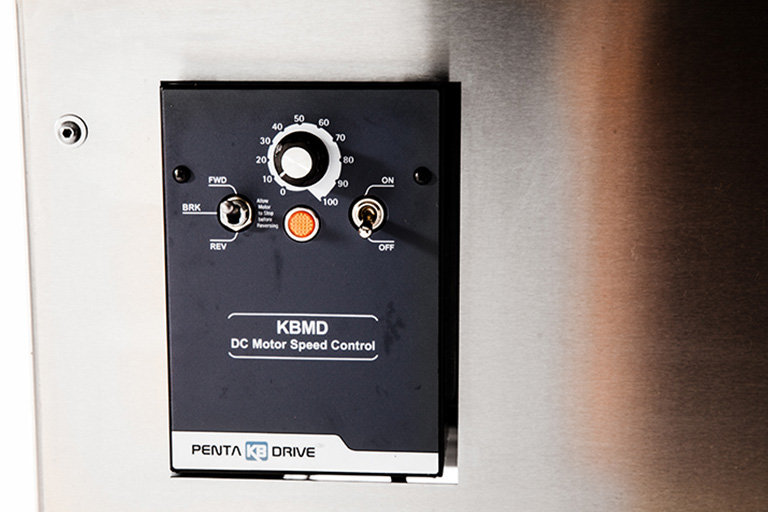

Variable Speed Drive
