905 Series for Kwik Lok Systems Bakery

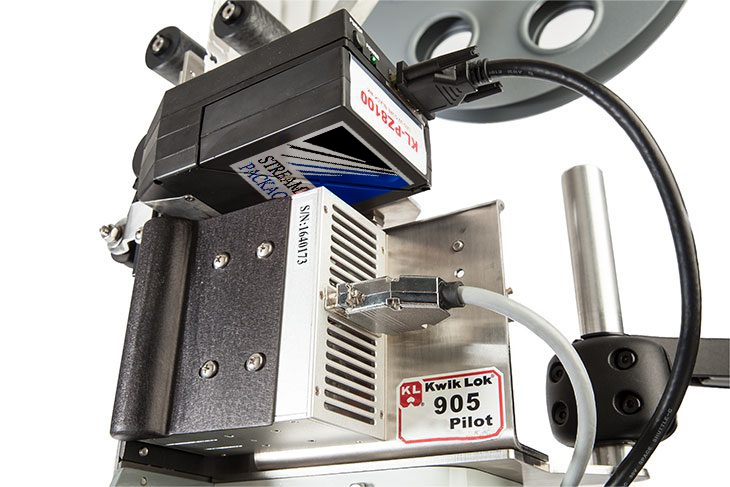

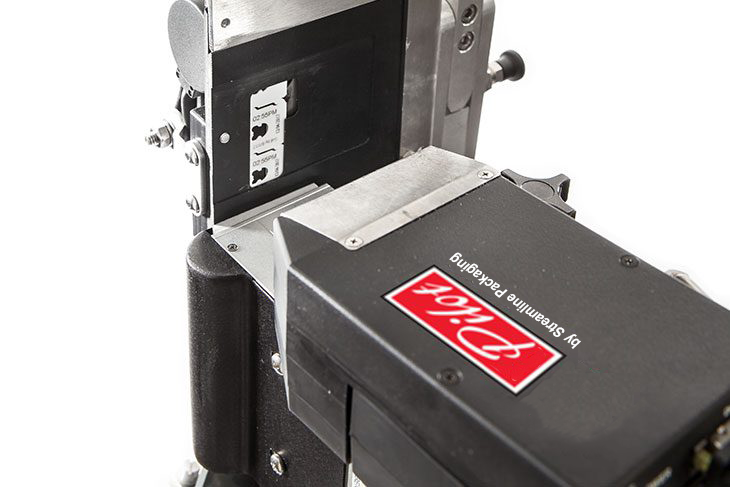

The 905 Series Pilot UV LED Curing System integrated with Kwik Lok’s 872 or 893 Automatic Bag Closing Machine provides an ideal solution for bakeries printing sell by dates, suggested list prices, and 2D bar codes on bakery bag closures.

Streamline Packaging’s UV LED curing technology features a low maintenance ink cured only by UV LED light. The ink won’t dry until it comes in contact with the UV light, meaning a lower maintenance solution than all other ink jet technologies. This instant LED curing ink leaves a permanent mark that is impervious to environmental factors such as sunlight, water, moisture, temperature, and contains virtually no VOCs, making it ideal for food applications. Additionally, the 905 Series Pilot system utilizes easy-to-use software modified specifically for the baking industry for easy message programming and recall.

We have inks and fluids for all of our printing equipment!

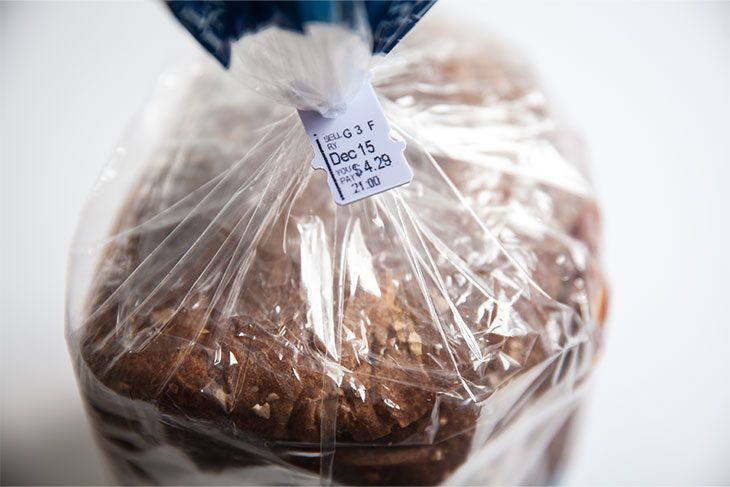

Printing Samples

Benefits

• Print Technology – Piezo impulse printhead technology
• Maximum Print Height – 0.7” (1.8 cm)
• Vertical Print Resolution – 185 dpi
• Horizontal Print Resolution – 205 dpi
• Print Speed – Up to 135 feet/min. (41 m/min.) @ 205 dpi
• Time & Date – Internal real time clock with battery back-up
• Product Sensor – External print trigger
• Communication Interface – One USB host and one Ethernet input

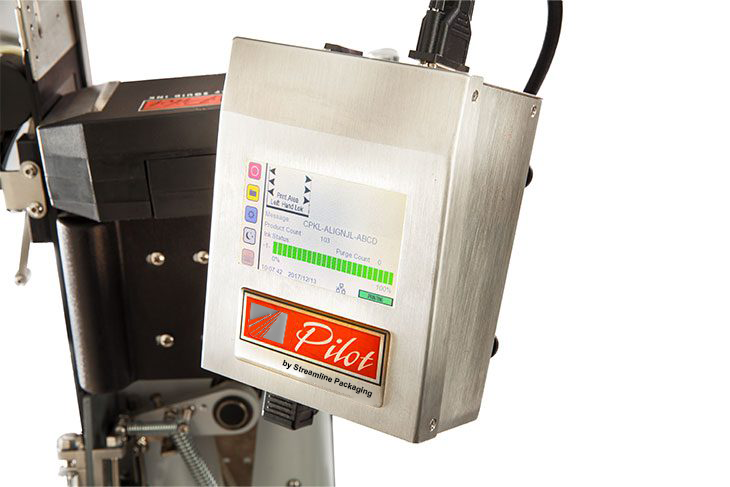

• Touchscreen – 4.3” (10.9 cm) full color touchscreen display
• Ink Cartridge Volume – 200ml
• Low Ink Indicator – Message alert on touchscreen; LED light beacon optional
• Electrical Requirements – 100 – 240 VAC, 50/60 Hz
• Operating Environment – 34°F – 104°F (1° – 40°C)
• Storage Environment – 0°F – 140°F (-18° – 60°C)
• Agency Certifications – CE and TUV certified

UV LED System

• Wave Length – 395 +/- 5nm
• Controller Dimensions – 13” x 9” x 5.2” (33cm x 7cm x 13cm)
• Illuminating Head Dimensions – 4.7” x 2.6” x 4.7” (12cm x 7cm x 12cm)
• Illuminant Output Control – 10% – 100%
• Power Supply – 90 – 220 VAC, 50/60 Hz, 300W
• LED Lifetime – 20,000 hours or more
• Operating Environment – 14°F – 131°F (-10° – 55°C)
• Storage Environment – 13°F – 185°F (-10° – 85°C)

System

• Time & Date – Multiple formats including: 1,2,4-digit year, 1,2-digit month, 3-letter month, custom month string, 1-letter day of month, 2-digit day of month, 1-digit day of week, 1,3-letter day of week, 2-digit week of year, 3-digit Julian year, 1-letter hour (a-x), 2-digit hour (12 or 24), 2-digit minute, 2-digit second, 1,2-letter meridian (A/P, AM/PM) custom week string
• Item Numbering – Sixteen counters, one of which can be a daily counter
• Shift Codes – Four programmable shift codes with automatic rollover
• Bar Codes – Code 39, Interleaved 2 of 5, UPC-A, EAN-8, EAN-13, Code 128, UCC-128, SCC-14 ITF, SCC-14 128, SSCC-18, MSI, DataMatrix, QR, and PDF417 bar codes standard dynamic. Other barcodes can be printed as static bitmaps.
• Fonts – Arial, Arial Bold, Courier, Tahoma Bold and Lucida resident fonts for use in variable data elements. Static elements in any Windows® font
• Logos – Most image files supported with Orion Graphical Interface Software
• Printing Features – Reverse, invert, rotate, repeat
• Number of Messages – 1GB storage space will store approximately 1000+ messages
• Ink Usage – Shown in Orion™ PC Software, per message format

Optional Accessories

• Bar Code Laser Scanner – Allows scan and print message retrieval
• External Light Beacon – Indicates low ink levels
• Starter Kit – Includes ink, cleaner and flush solution, printhead wipes, hand cleaner and latex gloves
